Chapter 12: Q14P (page 327)

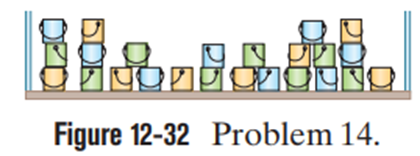

Question: In Fig.12-32, a horizontal scaffold, of length 2.00 m and uniform mass 50 kg , is suspended from a building by two cables. The scaffold has dozens of paint cans stacked on it at various points. The total mass of the paint cans is 75 kg . The tension in the cable at the right is 722 N . How far horizontally from thatcable is the center of mass of the system of paint cans?

Short Answer

Expert verified

Answer:

The center of mass of the system of paint cans is 0.702 m horizontally.

Step by step solution

01

Understanding the given information

L = 2.00 m

Mass of scaffold, ms = 50 Kg

Mass of paint cans, M = 75.0 kg

Tension in right cable, TR=722 N

02

Concept and formula used in the given question

Using the concept of static equilibrium, you can write the equation for torque with the given information. Solving this, you can find the center of mass of the system. The formula used is given below,

Static Equilibrium conditions:

鈭�Fx=0鈭�Fy=0鈭�蟿=0

03

Calculation how far horizontally from that cable is the center of mass of the system of paint cans

Applying condition of static equilibrium:

鈭�蟿=0

Considering pivot at left point.

-msgL2-Mgx+TR脳L=0-50脳9.8脳1-75脳9.8脳x+722脳2=0x=1.2979m

So, the distance from the right cable is:

d=2-x=2-1.2979=0.702m

Hence, the center of mass of the system of paint cans is horizontally.
0.702 m

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

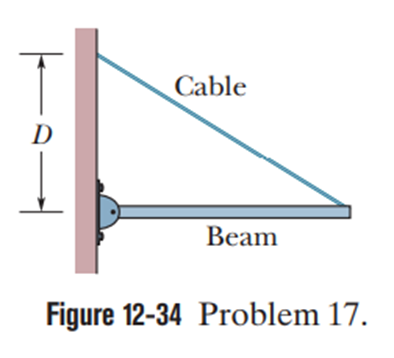

Question: In Fig.12-34, a uniform beam of weight 500 Nand length 3.00 m is suspended horizontally. On the left it is hinged to a wall; on the right it is supported by a cable bolted to the wall at distance Dabove the beam. The least tension that will snap the cable is 1200 N. (a) What value of D corresponds to that tension? (b) To prevent the cable from snapping, should Dbe increased or decreased from that value?

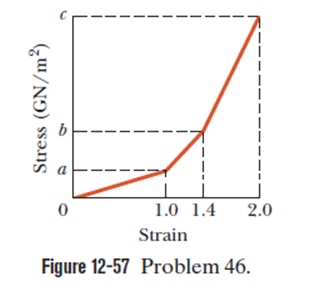

Figure 12-57 shows an approximate plot of stress versus strain for a spider-web thread, out to the point of breaking at a strain of 0.200. The vertical axis scale is set by values a=0.12 GN/m2, b=0.30 GN/m2, and c=0.80 GN/m2 . Assume that the thread has an initial length of 0.80 cm, an initial cross-sectional area of 8.0x10-12 m2, and (during stretching) a constant volume. Assume also that when the single thread snares a flying insect, the insect鈥檚 kinetic energy is transferred to the stretching of the thread. (a) How much kinetic energy would put the thread on the verge of breaking? What is the kinetic energy of (b) a fruit fly of mass 6.00 mg and speed 1.70 m/s and (c) a bumble bee of mass 0.388 g and speed 0.420 m/s ? Would (d) the fruit fly and (e) the bumble bee break the thread?

Question: A uniform cubical crate is 0.750 m on each side and weighs 500 N . It rests on a floor with one edge against a very small, fixed obstruction. At what least height above the floor must a horizontal force of magnitude 350 N be applied to the crate to tip it?

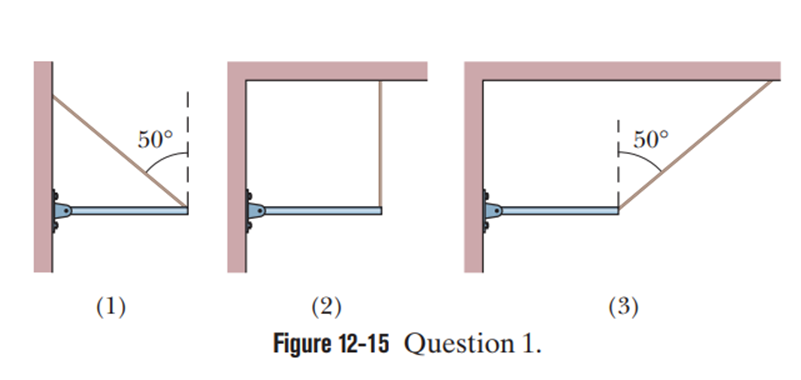

Figure 12-15 shows three situations in which the same horizontal rod is supported by a hinge on a wall at one end and a cord at its other end. Without written calculation, rank the situations according to the magnitudes of (a) the force on the rod from the cord,
