Chapter 12: Q62P (page 351)

A mine elevator is supported by a single steel cable2.5cmin diameter. The total mass of the elevator cage and occupants is670kg .By how much does the cable stretch when the elevator hangs by (a)12m of cableand (b) 362mof cable?(Neglect the mass of the cable.)

Short Answer

Expert verified

a) Cable stretch when elevator hung by 12鈥尘is8.0脳10鈭�4m .

b) Cable stretch when elevator hung by 362鈥尘is0.024鈥尘 .

Step by step solution

01

Understanding the given information

Mass of system is670鈥块驳.

The diameter of the wire is 2.5鈥塩尘(1鈥�m100鈥�cm)=0.025鈥�m .

02

Concept and formula used in the given question

Using the given mass, you can find the weight of the elevator. Using Hooke's law formula, you can find the distance by which the cable is stretched. The formulas used are given below.

Hooke's law,螖L=(wAY)L

Area of wire,A=蟺r2

W=mg

03

Calculation of how much the cable stretch when the elevator hangs by  12 m of cable

First, you found the weight of load from a given mass is

W=mg=672鈥�kg脳9.8鈥�m/s2=6566鈥塏

The area of the wire is

A=蟺r2=3.14脳(0.0125鈥�m)2=4.91脳10鈭�4m2

螖L=(6566鈥�N(4.91脳10鈭�4鈥�m2)(2.0脳1011鈥�N/m2))(12鈥�m)=8.0脳10鈭�4鈥尘
04

(b) Calculation ofby how much the cable stretch when the elevator hangs by362 m   of cable

螖L=(6566鈥�N(4.91脳10鈭�4鈥�m2)(2.0脳1011鈥�N/m2))(362鈥�m)=0.024鈥尘

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

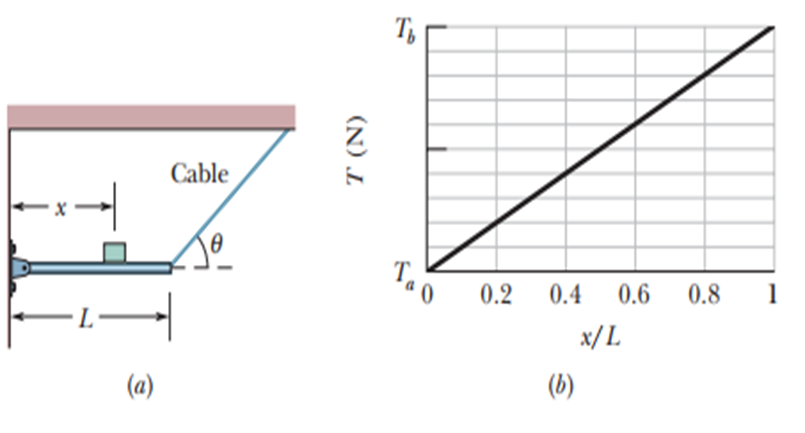

Figure (a) shows a horizontal uniform beam of massmband lengthLthat is supported on the left by a hinge attached to a wall and on theright by a cable at angle 胃 with the horizontal. A package of mass mp is positioned on the beam at a distance x from the left end. The total mass ismb+mp=61.22kg. Figure (b) gives the tension T in the cable as a function of the package鈥檚 position given as a fraction x/L of the beam length. The scale of the T axis is set by Ta=500N and Tb=700N.

(a) Evaluate angle胃 ,

(b) Evaluate massmb , and

(c) Evaluate mass mp.

In Fig. 12-60, a 103 kguniform log hangs by two steel wires, Aand B, both of radiuses 1.20 mm. Initially, wire Awas 2.50 mlong and 2.0 mmshorter than wire B. The log is now horizontal. What are the magnitudes of the forces on it from (a) wire Aand (b) wire B? (c) What is the ratio dA/dB?

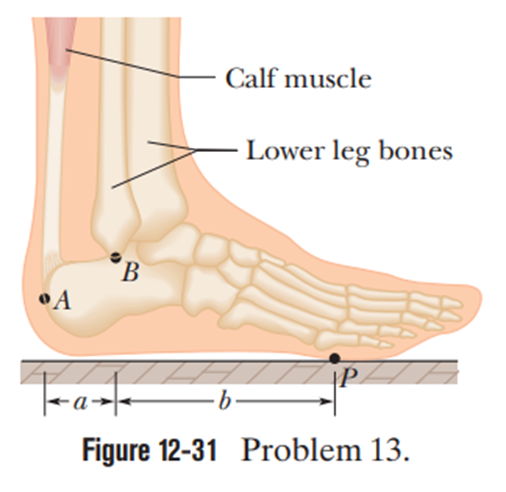

Question: Fig. 12-31 shows the anatomical structures in the lower leg and foot that are involved in standing on tiptoe, with the heel raised slightly off the floor so that the foot effectively contacts the floor only at point P. Assume distance a = 0 .5 cm , distanceb = 15 cm, and the person鈥檚 weight W = 900 N. Of the forces acting on the foot, what are the (a) magnitude and (b) direction (up or down) of the force at point Afrom the calf muscle and the (c) magnitude and (d) direction (up or down) of the force at point Bfrom the lower leg bones?
