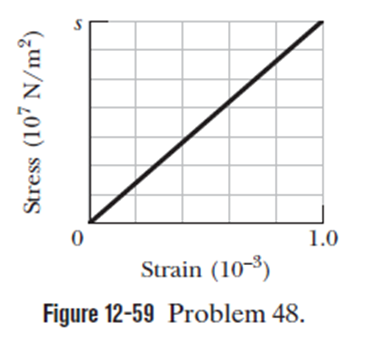

Figure 12-59 shows the stress versus strain plot for an aluminum wire that is stretched by a machine pulling in opposite directions at the two ends of the wire. The scale of the stress axis is set by s=7.0, in units of107N/m2. The wire has an initial length of0.800mand an initial cross-sectional area of2.00×10−6m2. How much work does the force from the machine do on the wire to produce a strain of1.00×10−3?

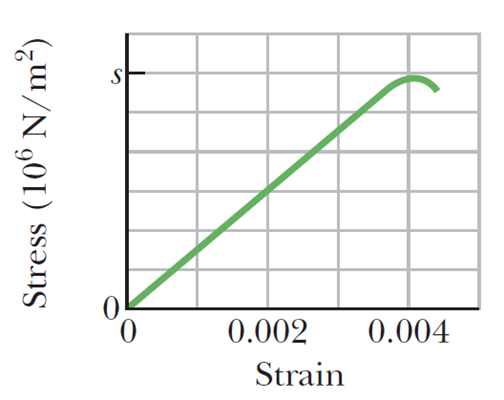

Figure:

Short Answer

Expert verified

Force from the machine does work on the wire to produce a strain of1.00×10−3 .

Step by step solution

01

Determine the given quantities

A stress versus strain plot for an aluminum wire is given and the scale of the stress axis is

s=7.0,inunitsof107 N/m2

The initial length of is 0.800 mand initial cross-sectional area of2.00×10−6 m2

02

Determine the concept of force, stress and strain

The stress on the object is equal to force per unit area. The strain is equal to change in the length per original length.

Using formula for stress and strain, find how much work does the force from the machine do on the wire to produce a strain of

Consider the formula for the work done as:

w=∫Fdx

03

Determine the work on the wire by the force to produce a strain of 1.00×10-3

Consider the formula for the work done:

w=∫Fdx

Consider the equation for the stress as:

F=stress×area

Consider the formula for the differential length as:

dx=strain×length

Substitute the values in the formula for the work done and solve as:

w=∫stress×A×strain×L=AL∫stress×strain=wirearea×lengthofwire×areaunderthecurveofgraph

Area under the curve of graph=12base×height=12(1.0×10−3 N/m2)(7.0×107 N/m2)=35000N/m2

Therefore, solve for the work done on the wire as:

K=W=AL(grapharea)=(2.0×10−6″¾2)(0.800″¾)(35000 â¶Ä‰N/m2)=0.0560J

Force from the machine does 0.0560 Jwork on the wire to produce a strain of1.00×10−3

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In Fig. 12-41, a climber with a weight of 533.8 N is held by a belay rope connected to her climbing harness and belay device; the force of the rope on her has a line of action through her center of mass. The indicated angles are θ=40.0°andϕ=30.0°. If her feet are on the verge of sliding on the vertical wall, what is the coefficient of static friction between her climbing shoes and the wall?

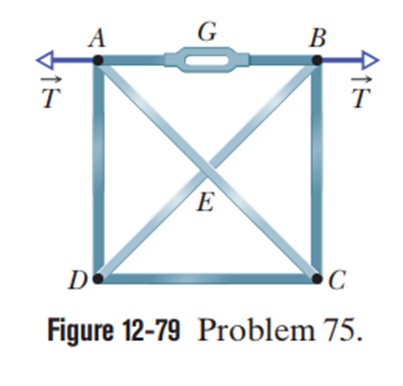

The rigid square frame in Fig. 12-79 consists of the four side bars AB ,BC , CD , and DA plus two diagonal bars ACand BD , which pass each other freely at E. By means of the turnbuckle G, bar ABis put under tension, as if its ends were subject to horizontal, outward forcesT→ of magnitude535 N .

(a) Which of the other bars are in tension? What are the magnitudes of (b) the forces causing the tension in those bars and (c) the forces causing compression in the other bars?

The leaning Tower of Pisa is 59.1 m high and 7.44 m in diameter. The top of the tower is displaced4.01″¾ from the vertical.Treat the tower as a uniform, circular cylinder. (a) What additional displacement, measured at the top, would bring the tower to the verge of toppling? (b) What angle would the tower then make with thevertical?

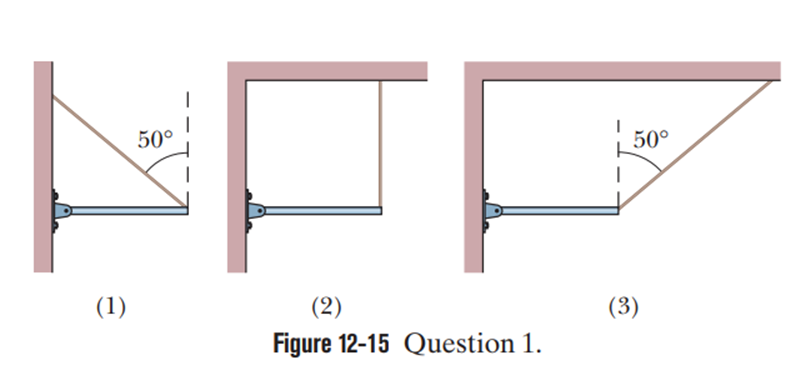

Figure 12-15 shows three situations in which the same horizontal rod is supported by a hinge on a wall at one end and a cord at its other end. Without written calculation, rank the situations according to the magnitudes of (a) the force on the rod from the cord,

(b) the vertical force on the rod from the hinge, and

(c) the horizontal force on the rod from the hinge, greatest first.

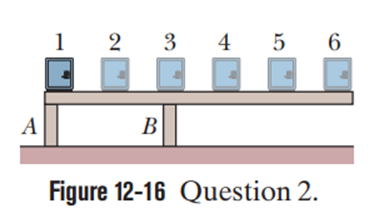

In Fig. 12-16, a rigid beam is attached to two posts that are fastened to a floor. A small but heavy safe is placed at the six positions indicated, in turn. Assume that the mass of the beam is negligible compared to that of the safe.
