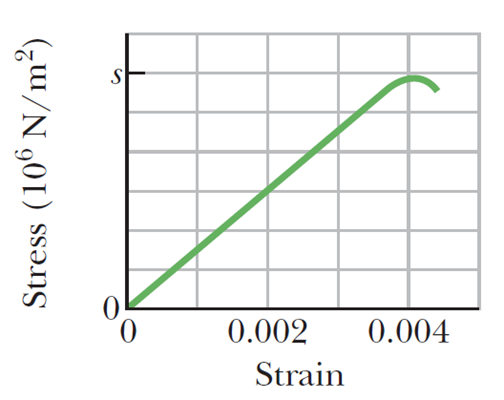

The stress-strain curve for a material is given for which scale is s =300 in units of 10⁶ N/m²

Young’s modulus is the ratio of stress to strain. The stress is force per unit area. The strain is defined as change in length per unit original length.

Using the formula for Young’s modulus, find the Young’s modulus of the material.

Consider the formula is:

$E=\frac{stress}{strain}$

The given plot is the plot of stress against strain. The slope of the plot will give us the ratio of stress against strain. It is equal to Young’s modulus. Therefore,

$$\begin{gathered} E=\frac{stress}{strain} \\ =slopeofthestress-straincurve \end{gathered}$$

From the given graph, the slope is equal to$7.5×{10}^{10}N/m^2$ .

Therefore, the Young’s modulus is equal to$7.5×{10}^{10}N/m^2$

As the range of curve is linearly extends up to$2.9×{10}^{8}N/m^2$.

Therefore,the approximate yield strength is$2.9×{10}^{8}N/m^2$
