Question: An automobile with a mass of 1360 kg has 3.05 m between the front and rear axles. Its center of gravity is located 1.78 m behind the front axle. With the automobile on level ground, determine the magnitude of the force from the ground on (a) each front wheel (assuming equal forces on the front wheels) and (b) each rear wheel (assuming equal forces on the rear wheels).

Short Answer

Expert verified

Answer:

  1. The magnitude of the force applied from the found on each from wheel is 2.77 KN .
  2. The magnitude of the force applied from the ground on each rear wheel is 3.89 KN .

Step by step solution

01

Understanding the given information

The mass of the automobile, 1360 K g

The horizontal distance between the axels, L = 3.09 m

The horizontal distance from the front axle to the center of mass, l'=1.78m

The horizontal distance from the axle to the center of mass is,l=3.05-1.78=1.27m

02

Concept and formula used in the given question

Using the formula for torque, you can find the force F1.Then by balancing forces for equilibrium, you can find F2. The formula used is given below.τ=F×r

03

(a) Calculation for the magnitude of the force from the ground on each front wheel

The torque about the rear axle is,

τ=F12L=MglF1=Mgl2L=1360×9.8×1.272×3.05=2.77×103N=2.77kN

Therefore, the magnitude of the force applied from the ground on each front wheel is 2.77 KN

04

(b) Calculation for the magnitude of the force from the ground oneach rear wheel

At equilibrium,

2F1+2F2=MgF2=Mg-2F12=13609.8-22.77×1032=3.89×103N= 3.89kN

Therefore, the magnitude of the force applied from the ground on each rear wheel is 3.89 KN

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

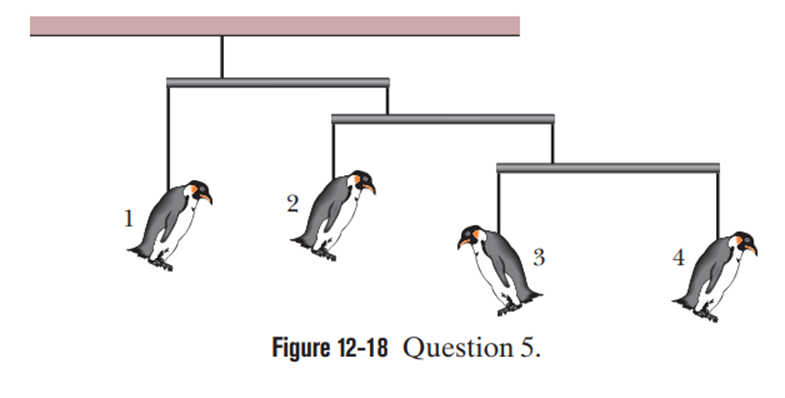

Figure 12-18 shows a mobile ofQ toy penguins hanging from a ceiling. Each crossbar is horizontal, has negligible mass, and extends three times as far to the right of the wire supporting it as to the left. Penguin 1 has mass m1=48kg. What are the masses of
