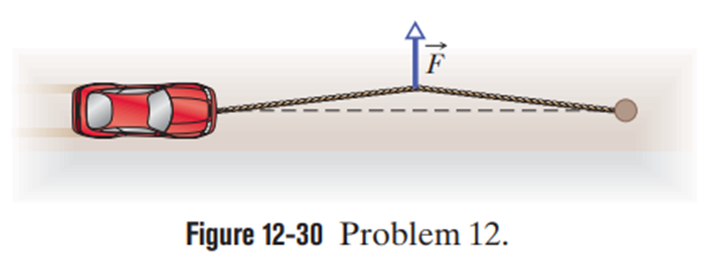

Question: In Fig 12-30, trying to get his car out of mud, a man ties one end of a rope around the front bumper and the other end tightly around a utility pole 18 maway. He then pushes sideways on the rope at its midpoint with a force of 550 N , displacing the center of the rope 0.30 m, but the car barely moves. What is the magnitude of the force on the car from the rope? (The rope stretches somewhat.)

Short Answer

Expert verified

Answer:

Magnitude of force on the car from the rope is 8.3脳103N.

Step by step solution

01

Understanding the given information

F = 550 N

Displacement of the center of the rope is0.30 m .

02

Concept and formula used in the given question

By drawing an FBD of the rope, you can calculate the angle by using the given geometry. By applying static equilibrium conditions, you can get the tensions on the both sides of rope. Then by solving the torque equation, you can calculate the tension on the rope by using the formula given below.

Static Equilibrium conditions:

鈭�Fx=0鈭�Fy=0鈭�蟿=0

03

Calculation for the magnitude of the force on the car from the rope

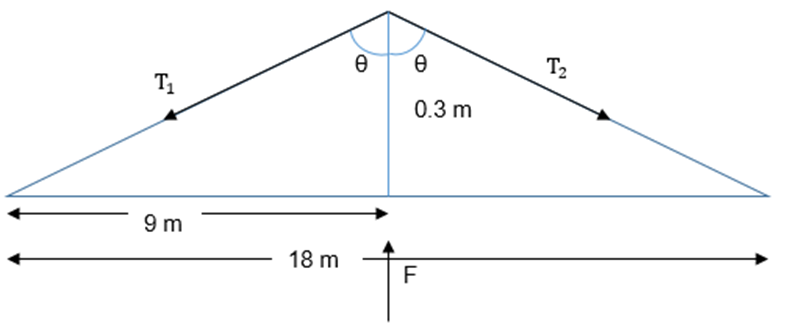

FBD of the rope:

From the figure,

胃=tan-10.39=1.90鈭�Fx=0T1脳cos胃-T2脳cos胃=0

Hence,

T1=T2=T鈭�Fy=02T脳sin胃-F=02T脳sin1.9-550=0

By solving for T:

T=8300N=8.3脳103N

Hence, theMagnitude of force on the car from the rope is8.3脳103N .

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

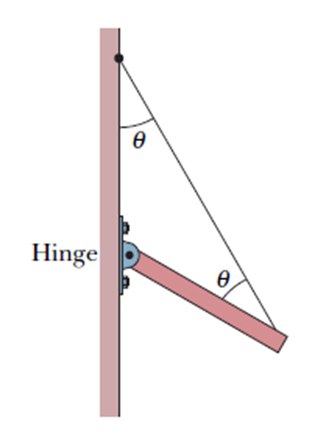

A uniform beam is 5.0鈥尘long and has a mass of 53鈥塳驳. In Fig. 12-74, the beam is supported in a horizontal position by a hinge and a cable, with angle胃=60掳. In unit-vector notation, what is the force on the beam rom the hinge?
