A Carnot engine whose low-temperature reservoir is at17°Chas an efficiency of 40%. By how much should the temperature of the high-temperature reservoir be increased to increase the efficiency to 50%?

Short Answer

Expert verified

The increased temperature of the high-temperature reservoir is 97 K

Step by step solution

01

The given data

The temperature of the low-temperature reservoirTL=17°C=290K

Initial efficiency,ε=40%or0.40

Efficiency after temperature increase,ε=50%or0.50

02

Understanding the concept of Carnot’s heat engine

We use the concept of efficiency of Carnot’s heat engine to find the temperature increase of the high-temperature reservoir.

Formula:

The efficiency of Carnot’s engine,

ε=1-TLTH (1)

WhereTL is the temperature of the low-temperature reservoir, THis the temperature of the high-temperature reservoir, and εis the efficiency of the system

03

Calculation of the increased temperature of the reservoir

Before temperature increases, the efficiency of Carnot’s engine isε=0.40

TL=17°C=290K

Then solving forTHusing equation (1), we get that

TH=TL1-ε=290K1-0.40=483K

If we replaceε=0.50we obtain the final high temperature using the same equation (1) as given:

TH'=290K1-0.50=580K

The difference between both will give the increased temperature of the reservoir as given:

TH'-TH=580K-483K=97K

Hence, the value of the increase in temperature of the reservoir is 97 K

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Point i in Fig. 20-19 represents the initial state of an ideal gas at temperature T. Taking algebraic signs into account, rank the entropy changes that the gas undergoes as it moves, successively and reversibly, from point i to pointsa, b, c, and d, greatest first.

A 600 glump of copper at 80.0°C is placed in70.0gof water at10.0°Cin an insulated container. (See Table 18-3 for specific heats.) (a) What is the equilibrium temperature of the copper water system? What entropy changes do (b) the copper, (c) the water, and (d) the copper–water system undergo in reaching the equilibrium temperature?

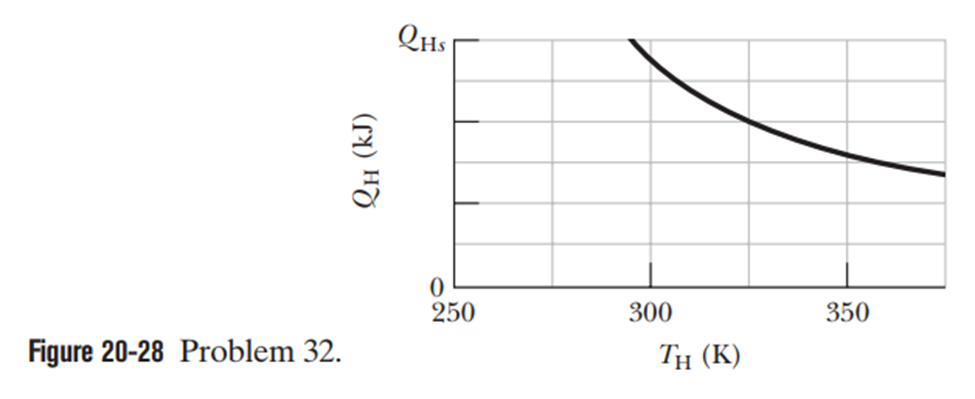

A Carnot engine is set up to produce a certain work W per cycle. In each cycle, energy in the form of heat QHis transferred to the working substance of the engine from the higher-temperature thermal reservoir, which is at an adjustable temperature TH. The lower-temperature thermal reservoir is maintained at temperature TL=250K. Figure 20-58 gives QH for a range of TH . The scale of the vertical axis is set by QHs=6.0KJ. If THis set at 550 K , what is QH?
