a). If Earth had a uniform surface charge density of1.0electron/m2(a very artificial assumption), what would its potential be? (SetV=0at infinity.) What would be the

(b) magnitude and

(c) direction (radially inward or outward) of the electric field due to Earth just outside its surface?

Short Answer

Expert verified
  1. The electric potential is, V=−0.12Volts.
  2. The electric field outside of the earth is, E=−18n⋅N/C.
  3. The direction of the field is inward.

Step by step solution

01

Given data:

The surface charge density, σ=1.0e/m2=−1.6×10-19C/m2.

At infinity the potential, V=0

The radius of Earth, R=6.4×106m

02

Determining the concept:

Potential due to continuous charge distribution. According to continuous charge distribution, when charges are continuously spread over a line, surface, or volume, the distribution is called continuous charge distribution.

Formulae are as follow:

The potential is,

V=14πεo⋅qR

The density is defined by

σ=q4πR2q=4πR2σ

The electric field is,

E=σε0

Where, q is charge, R is radius, V is potential, E is electric field, and ε0 is the Permittivity of free space having a value 8.85×10−12F/m.

03

(a) Determining the electric potential:

The electric potential:

V=14πεo⋅qR

Substitute4πR2σfor q in the above equation.

V=4πR2σ4πεoR=Rσεo

Substitute known values in the above equation.

V=(6.4×106m)(−1.6×10-19C/m2)8.85×10−12F/m=−1.2×10−1Volts=−0.12V

Hence, the electric potential is .−0.12Volts

04

(b) Determining the electric field outside the earth:

The electric field outside of the earth is given as,

E=σε0=−1.6×10-19C/m28.85×10−12F/m=−0.18×10−7N/C=−18n⋅N/C.

Hence,the electric field outside of the earth is −18n⋅N/C.

05

(c) Determining the direction of the field:

As,E=−18nN/C,

Therefore, direction of the field must be inward.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In the situation of Question 7, is the work done by your force positive, negative, or zero if the particle is moved (a) from Ato B, (b) from Ato C, and (c) from Bto D? (d) Rank those moves according to the magnitude of the work done by your force, greatest first.

In the rectangle of Fig. 24-55, the sides have lengths 5.0 cmand15 cm, q1= -5.0 mC, and q2= +2.0 mC. With V=0at infinity, what is the electric potential at (a) corner Aand (b) corner B? (c) How much work is required to move a charge q3= +3.0 mCfrom Bto Aalong a diagonal of the rectangle? (d) Does this work increase or decrease the electric potential energy of the three-charge system? Is more, less, or the same work required if q3 is moved along a path that is (e) inside the rectangle but not on a diagonal and (f) outside the rectangle?

A long, solid, conducting cylinder has a radius of 2.0 cm. The electric field at the surface of the cylinder is160N/C, directed radially outward. Let A, B, and Cbe points that are10cm, 2.0 cm, and5.0 cm, respectively, from the central axis of the cylinder. What are (a) the magnitude of the electric field at Cand the electric potential differences (b)VB-VCand (c)VA-VB?

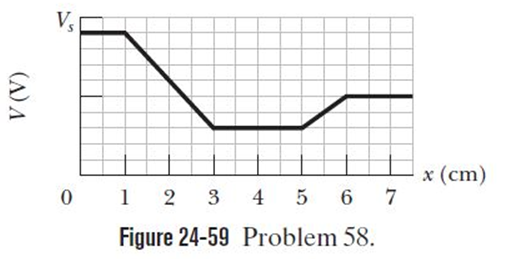

Proton in a well.Figure 24-59shows electric potential Valong an xaxis.The scale of the vertical axis is set by Vs=10.0 V. A proton is to be released at x=3.5 cmwith initial kinetic energy 4.00 eV. (a) If it is initially moving in the negativedirection of the axis, does it reach a turning point (if so, what is the x-coordinate of that point) or does it escape from the plottedregion (if so, what is its speed at x=0)? (b) If it is initially movingin the positive direction of the axis, does it reach a turning point (ifso, what is the xcoordinate of that point) or does it escape from theplotted region (if so, what is its speed at x=6.0 cm)? What are the (c) magnitude Fand (d) direction (positive or negative direction ofthe xaxis) of the electric force on the proton if the proton movesjust to the left of x=3.0 cm? What is (e) Fand (f) the direction ifthe proton moves just to the right of x=5.0 cm?

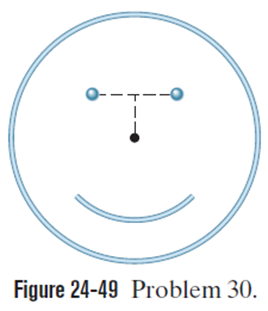

Question: The smiling face of Fig. 24-49 consists of three items:
