Chapter 24: Q7P (page 710)

The electric field in a region of space has the components Ey = Ez = 0and Ex = (4.00N/C)x. Point Ais on the yaxis at y = 3.00m, and point Bis on the xaxis at x = 4.00m. What is the potential difference VB - VA?

Short Answer

Expert verified

The potential difference is, -32.0V.

Step by step solution

01

Given

The electric field in a region of space has the components Ey = Ez = 0 and Ex = (4.00N/C)x.

02

Understanding the concept

Using the equation of potential difference V = E.d, we can find the potential difference between two points.

03

Calculate the potential difference VB - VA

We connect A to the origin with a line along the y axis, along which there is no change of potential (Equation: 鈭�E.ds=0). Then, we connect the origin to B with a line along the x-axis, along which the change in potential is

鈭�V=-鈭�0x=4E.ds

Substitute all the value in the above equation.

鈭�V=-4.00鈭�04xdx=-4.00x2204VB-VA=-4.00422VB-VA=-32.0V

Hence the potential difference is, -32.0V.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

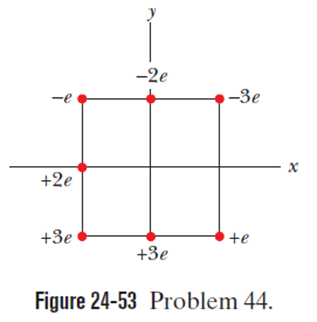

Question: In Fig. 24-53, seven charged particles are fixed in place to form a square with an edge length of 4.0 cm. How much work must we do to bring a particle of charge +6Einitially at rest from an infinite distance to the center of the square?

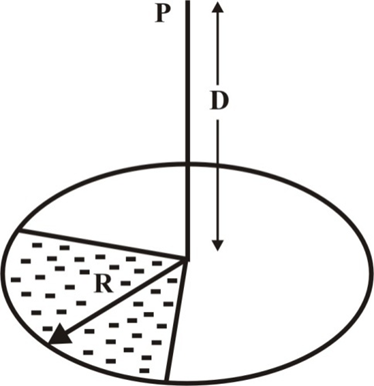

Question: A plastic disk of radius R = 64.0 cmis charged on one side with a uniform surface charge density蟽=7.73fC/m2, and then three quadrants of the disk are removed. The remaining quadrant is shown in Fig. 24-50.With V =0at infinity, what is the potential due to the remaining quadrant at point P, which is on the central axis of the original disk at distance D = 25.9 cmfrom the original center?

In Fig. 24-71, a metal sphere with charge辩=5.00渭颁and radius r=3.00cm is concentric with a larger metal sphere with charge 蚕=15.0渭颁 and radius R=6.00cm .

(a) What is the potential difference between the spheres? If we connect the spheres with a wire, what then is the charge on

(b) the smaller sphere and

(c) the larger sphere?

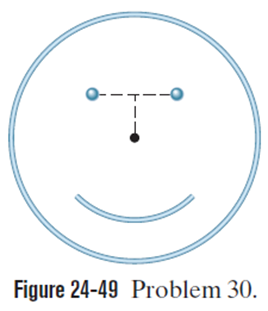

Question: The smiling face of Fig. 24-49 consists of three items:

1.A thin rod of charge-3.0渭Cthat forms a full circle of radius;

2.a second thin rod of charge2.0渭Cthat forms a circular arc of radius 4.0cm, subtending an angle of 900about the center of the full circle;

3.An electric dipole with a dipolemoment that is perpendicular to aradial line and has a magnitude of1.28脳10-21C.m.What is the net electric potential atthe center?

A long, solid, conducting cylinder has a radius of 2.0鈥�cm. The electric field at the surface of the cylinder is160N/C, directed radially outward. Let A, B, and Cbe points that are10cm,鈥�2.0鈥�cm, and5.0鈥�cm, respectively, from the central axis of the cylinder. What are (a) the magnitude of the electric field at Cand the electric potential differences (b)VB-VCand (c)VA-VB?
