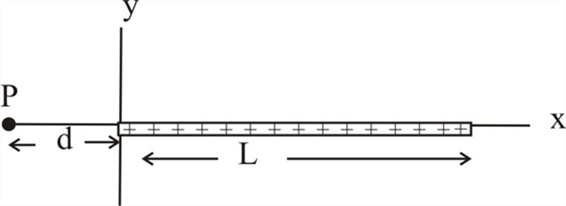

1. Length of the rod,L = 0.12 m
2. Non-uniform linear charge density, $\mathrm{λ}=cx$where$c=28.9{\text{pC/m}}^{\text{2}}$
3. The potential is at V = 0 infinity.
4. The distance of the point on the x-axis,$d=0.03\text{m}$

Using the value of the charge derived from the linear charge density in the formula of the potential at the segment of the rod from one end, we can get the value of the electric potential at the given point on the x-axis.

Formulae:

The charge due to linear charge density, $dq=\mathrm{λ}dx$ (i)

The electric potential due to the segment on the rod, $dV=\frac{1}{4\mathrm{Ï€}{\mathrm{Î\mu }}_0}\left(\frac{dq}{x+d}\right)$ (ii)

The charge of the segment using the given data in equation (i) is given as follows:

$dq=cxdx$

The potential at point P is obtained by integrating the expression for potential due to the segment of equation (ii) by substituting the above charge value as follows:

$$\begin{gathered} V={∫}_0^L\frac{1}{4\mathrm{Ï€}{\mathrm{Î\mu }}_0}\frac{cxdx}{\left(x+d\right)} \\ =\frac{c}{4\mathrm{Ï€}{\mathrm{Î\mu }}_0}{\left[x-dln\left(x+d\right)\right]}_0^L \\ =\frac{c}{4\mathrm{Ï€}{\mathrm{Î\mu }}_0}\left[L-dln\left(1+\frac{L}{d}\right)\right] \\ =\left(8.99×{10}^9{\text{Nm}}^{\text{2}}{\text{/C}}^{\text{2}}\right)\left(28.9×{10}^{-12}{\text{C/m}}^{\text{2}}\right)\left[\left(0.12\text{m}\right)-\left(0.03\text{m}\right)ln\left(1+\frac{\left(0.12\text{m}\right)}{\left(0.03\text{m}\right)}\right)\right] \\ =18.6×{10}^{-3}\text{V}\left(\frac{1\text{mV}}{{10}^{-3}\text{V}}\right) \\ =18.6\text{mV} \end{gathered}$$

Therefore, the electric potential is 18.6 mV
