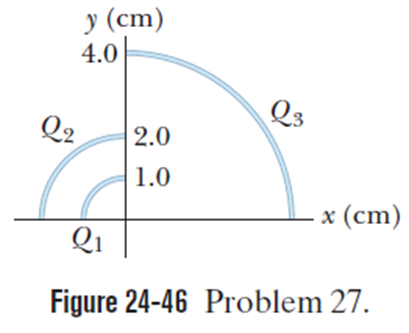

Question: In Fig. 24-46, three thin plastic rods form quarter-circles with a common center of curvature at the origin. The uniform charges on the three rods are,Q1=+30nC,Q2=+3.0Q1andQ3=-8.0Q1. What is the net electric potential at the origin due to the rods?

Short Answer

Expert verified

Answer:

The net electric potential at the origin due to the rods is +13.5 KV.

Step by step solution

01

The given data

  1. The uniform charges on the three rods,Q1=+30nC,Q2=+90nCandQ1=-240nC.
  2. The different radii are given as:R3=0.04m,R2=0.02m,R1=0.01m
02

Understanding the concept of the electric potential

Using the concept of electric potential at a point due to many charges present in the system, we can get the required electric potential at the given point at a distance from the center of the y-axis.

Formula:

The electric potential at a point due to a charge,V=14蟺蔚0QR (i)

03

Calculation of the net electric potential

The net electric potential at the origin due to the charges present in the system is given using equation (i) as follows:

Vnet=V1+V2+V3Vnet=14蟺蔚0Q3R3+Q2R2+Q1R1=9.0脳109脳Q1-80.04m+30.02m+10.01m=9.0脳109脳30脳10-9-200+150+100=+1.35脳104V=+13.5kV

Hence, the net potential is +13 .5 KV.
