In a single-slit diffraction experiment, the top and bottom rays through the slit arrive at a certain point on the viewing screen with a path length difference of 4.0 wavelengths. In a phasor representation like those in Fig 36-7, how many overlapping circles does the chain of phasors make?

Short Answer

Expert verified

4 overlapping circles are made.

Step by step solution

01

The given data

Given that in a single-slit diffraction experiment, the top and bottom rays through the slit arrive at a certain point on the viewing screen with a path length difference of 4.0 wavelengths.

02

Concept and Formula used

The dark fringes can be located with the general equation

asin胃=m位for m=1,鈥�2,鈥�3,...

a is path length difference of slit , and位 is wavelength.

03

Take path length difference to be 4λ

Using the above equation, path length difference is4位

So role="math" localid="1663147887994" asin胃=4位

Here, role="math" localid="1663147935739" m=4

This is a point of minimum.

A complete circle for each minima will appear.

Thus, chain of phasors will make 4 overlapping circles.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

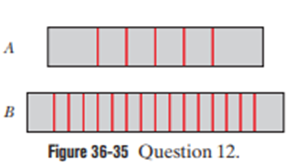

Figure 36鈥�35 shows the bright fringes that lie within the central diffraction envelope in two double-slit diffraction experiments using the same wavelength of light. Is (a) the slit width a, (b) the slit separation d, and (c) the ratio d/ain experiment B greater than, less than, or the same as those quantities in experiment A?
