Chapter 36: Q24P (page 1110)

Question:If someone looks at a bright outdoor lamp in otherwise dark surroundings, the lamp appears to be surrounded by bright and dark rings (hence halos) that are actually a circular diffraction pattern as in Fig. 36-10, with the central maximum overlapping the direct light from the lamp. The diffraction is produced by structures within the cornea or lens of the eye (hence entoptic). If the lamp is monochromatic at wavelength 550nm and the first dark ring subtends angular diameter 2.5o in the observer鈥檚 view, what is the (linear) diameter of the structure producing the diffraction?

Short Answer

Expert verified

The diameter of the structure producing the diffraction is 31.0渭m.

Step by step solution

01

Given data

The wavelength of monochromatic light 位=550nm

The angular diameter '蠒'=1.25掳

02

Definition of diffraction effect

When a wave hits a barrier or aperture, numerous events are referred to as diffraction. It is described as the interference or bending of waves through an aperture or around the corners of an obstruction into the geometric shadow of the obstruction or aperture.

03

Determining the diameter of the structure producing the diffraction

So the angle '胃'=2.5/2=1.25掳

The linear diameter 'd'

sin胃=1.22位dd=1.22脳550脳10-9msin1.25掳d=3.07588脳10-5m=31.0渭m

Hence, the diameter is 31.0渭m.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

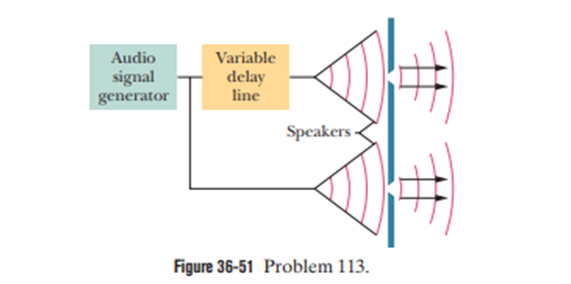

An acoustic double-slit system (of slit separation dand slit width ) is driven by two loudspeakers as shown in Fig. 36-51. By use of a variable delay line, the phase of one of the speakers may be varied relative to the other speaker. Describe in detail what changes occur in the double-slit diffraction pattern at large distances as the phase difference between the speakers is varied from zero to 2蟺. Take both interference and diffraction effects into account.

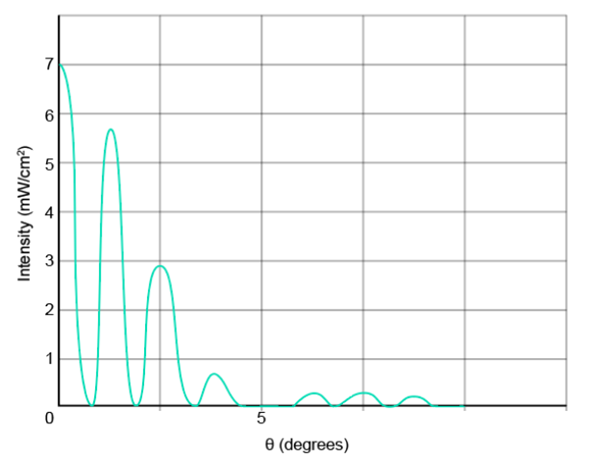

Light of wavelength 440 nm passes through a double slit, yielding a diffraction pattern whose graph of intensity I versus angular position is shown in Fig. 36-44. Calculate (a) the slit width and (b) the slit separation. (c) Verify the displayed intensities of the m=1and m=2 interference fringes.
