Of the chargeQinitially on a tiny sphere, a portion qis to be transferred to a second, nearby sphere. Both spheres can be treated as particles and are fixed with a certain separation. For what value of q/Qwill the electrostatic force between the two spheres be maximized?

Short Answer

Expert verified

Answer:

The value of q/Q for which the electrostatic force between the two spheres will be maximized is 0.5 .

Step by step solution

01

The given data

The charge initially of the first sphere is Q and a portion is q transferred to the nearby sphere.

02

Understanding the concept of induction

Due to induction, the charged body induces some charge on the nearby uncharged body. Now, using the concept of the Coulomb force of attraction or repulsion, we can get the force applied by the first sphere of the other sphere due to their charges. Now, for the maximum value of the ratio of the charges, we take the differentiation of the force to be zero.

Formula:

The electrostatic force of attraction or repulsion on a body by another charged body according to Coulomb’s law, F=kq1q2r2 (i)

03

Calculation of the ratio of the charges for maximum electrostatic force

As per the given data, if q is transferred by the first sphere to the second sphere, then the charge remaining on the first sphere is (Q-q).

Let,r be the separation between the centres of the two spheres.

Then, the electrostatic force between them can be given using equation (i) as follows:

F=kqQ-qr2

Now, for the case of maximum force, the value of the ratio q/Q can be calculated as follows:

dFdq=0kr2dqQ-qdq=0Q-q-q=0Q-2q=0

Solving further,

Q=2qqQ=12qQ=0.5

Hence, the ratio of q/Q is 0.5.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Figure 21-14 shows two charged particles on an axis. The charges are free to move. However, a third charged particle can be placed at a certain point such that all three particles are then in equilibrium. (a) Is that point to the left of the first two particles, to their right, or between them? (b) Should the third particle be positively or negatively charged? (c) Is the equilibrium stable or unstable?

In Fig. 21-44, what are the (a) magnitude and (b) direction of the net electrostatic force on particle 4 due to the other three particles? All four particles are fixed in the xy−plane, and,q1=−3.20×10−19 C,,q2=+3.20×10−19 C,q3=+6.40×10−19 C,q4=+3.20×10−19 C,θ1=35.00,d1=3.00 cmand d2=d3=2.00 c³¾.

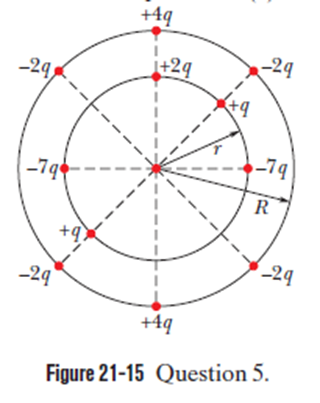

In Fig. 21-15, a central particle of charge-qis surrounded by two circular rings of charged particles. What are the magnitude and direction of the net electrostatic force on the central particle due to the other particles? (Hint:Consider symmetry.)

Question: In Fig. 21-41, three identical conducting spheres form an equilateral triangle of side length d=20.0 cm. The sphere radii are much smaller thand, and the sphere charges are, qA=-2.00nC,qB=-4.00nC,andqc=+8.00nC.

(a) What is the magnitude of the electrostatic force between spheresAandC?

The following steps are then taken:AandBare connected by a thin wire andthen disconnected;Bis grounded by the wire, and the wire is then removed;BandCare connected by the wire and then disconnected. What now are the magnitudes of the electrostatic force (b) between spheresAandCand (c) between spheresBandC?

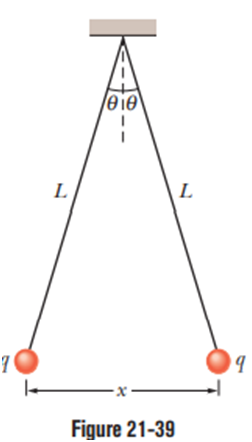

In Fig. 21-39, two tiny conducting balls of identical mass mand identical charge hang from non-conducting threads of length L. Assume that u is so small that tan u can be replaced by its approximate equal, sin u.

(a) Show thatx=(q2L2πε0mg)1/3gives the equilibrium separation xof the balls.

(b) If L=120cm,and, x=5.0cmwhat is|q|?
