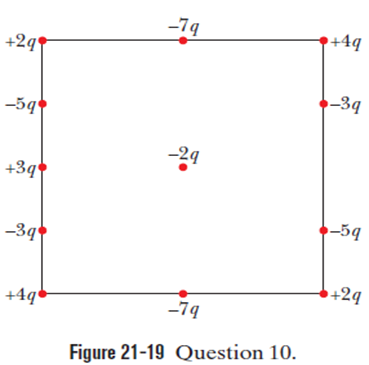

The distance between the charges particles is either d or d/2 along the perimeter.

Due to symmetrical conditions of equal polarities, magnitudes, and distance from the charge on which the force is acting on, the forces for these symmetrical pairs cancel out. Thus, using this concept, we can cancel out the symmetrical pairs and check the final charge that has a contribution to the net force value.

Formula:

The magnitude of the electrostatic force due to the two charges, $\left|F\right|=\frac{k\left|q_1\right|\left|q_2\right|}{r^2}$ (i)

As per the concept of symmetry, all the pairs with equal polarities and magnitude and at equal distances from the charge particle -2q will cancel out. Thus, only charge +3q acts on the charge.

So, the magnitude of the net electrostatic force acting on the charge can be given using equation (i) as follows:

$$\begin{gathered} \left|F_{net}\right|=\frac{k\left|+3q\right|\left|-2q\right|}{d^2} \\ =-\frac{6k{q}^2}{d^2} \end{gathered}$$

Now, as charge +3q has positive polarity, it will get attracted by the charge -2q at the centre.

Hence, the magnitude of the force is$\frac{6k{q}^2}{d^2}$ that is directed towards right in the positive x-axis direction.
