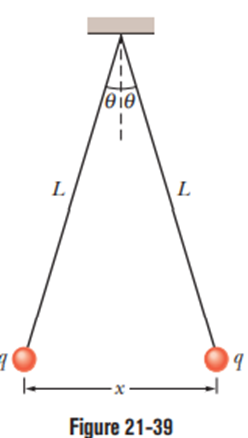

Question: (a) Explain what happens to the balls of Problem 42 if one of them is discharged (loses its charge qto, say, the ground). (b) Find the new equilibrium separation x, using the given values of Land mand the computed value of |q|.

Short Answer

Expert verified

Answer:

  1. If one of the balls is discharged, then the net electrostatic force between them becomes zero and they meet at the position at an angle.=00
  2. The new separation equilibrium value is3.1cm.

Step by step solution

01

The given data

  1. One of the balls from the two conducting balls hanging to non-conducting stand loses all of its charges.
  2. Given values to get the charge,L=120cm,m=10g,andx=5.0cm
02

Understanding the concept of gravitational force and electric force

Using the concept of Newton's laws of motion and the force due to Coulomb's law, we can get the formula of the separation equilibrium of the system. Using this formula and the given data, we can get the magnitude of the unknown charge.

Formulae:

The magnitude of the electrostatic force between any two particles,F=kq1q2r2 (i)

The separation equilibrium of this system according to previous problem, x=q2L20mg1/3 (ii)

03

a) Calculation of the situation after one ball is discharged

=00

If one of them is discharged, then using equation (i), we can say that there would no electrostatic repulsion between the two balls and they would both come to the position, making contact with each other.

04

b) Calculation of the new equilibrium separation x

A redistribution of the remaining charge would then occur, with each of the balls getting charge, q/2. Then they would again be separated due to electrostatic repulsion, which results in the new equilibrium separation, which is given using equation (ii) and the given data as:

x'=q/22L20mg1/3=141/3x=141/35.0cm=3.1cm(x=q2L20mg1/3=5cm,using the given data)

Hence, the new separation equilibrium is 3. 1 cm

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Figure 21-14 shows two charged particles on an axis. The charges are free to move. However, a third charged particle can be placed at a certain point such that all three particles are then in equilibrium. (a) Is that point to the left of the first two particles, to their right, or between them? (b) Should the third particle be positively or negatively charged? (c) Is the equilibrium stable or unstable?

The magnitude of the electrostatic force between two identical ions that are separated by a distance of 5.010-10mis3.710-9N. (a) What is the charge of each ion? (b) How many electrons are 鈥渕issing鈥 from each ion (thus giving the ion its charge imbalance)?

A particle of charge Qis fixed at the origin of an x-ycoordinate system. Att=0a particle (m=0.800g,q=4.00渭颁) is located on the xaxis atx=20.0cm, moving with a speed of50.0m/sin the positive ydirection. For what value of Qwill the moving particle execute circular motion? (Neglect the gravitational force onthe particle.)

In a spherical metal shell of radius R, an electron is shot from the center directly toward a tiny hole in the shell, through which it escapes. The shell is negatively charged with a surface charge density (charge per unit area) of.6.901013鈥塁/尘2What is the magnitude of the electron鈥檚 acceleration when it reaches radial distances (a)r=0.500Rand (b)2.00R?

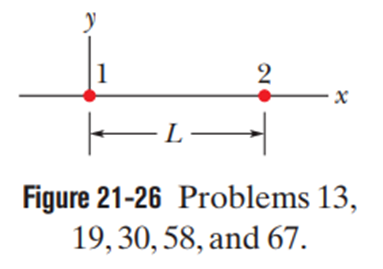

In Fig. 21-26, particles 1 and 2 are fixed in place on an xaxis, at a separation ofL=8.00cm.Their charges are q1=+eandq2=-27e. Particle 3 with chargeq3=+4is to be placed on the line between particles 1 and 2, so that they produce a net electrostatic forceF3,neton it. (a) At what coordinate should particle 3 be placed to minimize the magnitude of that force? (b) What is that minimum magnitude?
