(a) In electron-volts, how much work does an ideal battery with a 12.0 V emf do on an electron that passes through the battery from the positive to the negative terminal? (b) If 3.40×1018electrons pass through each second, what is the power of the battery in watts?

Short Answer

Expert verified

The work done by an ideal battery is W=12.0eV

The power of the battery in watts isP=6.53W

Step by step solution

01

 Step 1: Given

Emfε=12V

n=Nt=3.40×1018s-1
02

Determining the concept

Use the formula for work done relating with emf of battery to calculate its value. Then write the formula for the power in terms of current and voltage. Then, putting the current in terms of charge and charge in terms of no. of electrons passing per second, find an expression for power. Inserting the given values in it will give its value.

Formulae are as follow:

W=qV

PowerP=iV

Where,

W isWork done, P is Power,Where, i is current, V is voltage,q is charge.

03

(a) Determining the work done by an ideal battery

Work done by an ideal battery:

Work done is related to potential difference as,

W= qV

For an ideal battery ε=V

role="math" localid="1662555209307" W=qε

For electron,

W=eεSubstitutingallvalues,W=e(12V)W=12.0eV

Hence,the work done by an ideal battery isW=12.0eV

04

(b) determining the power of the battery in watts

The power of the battery in watts :

P=iV

But the current is,

i=qt

And,

q=Ne

i=Net

Hence,

P=NeVt=neV

Since , n=3.40×1018/s=12V ande=1.6×10-19C

P=(3.40×1018s-1)(1.6×10-19C)(12V)P=6.53W

Hence, the power of the battery in watts P=6.53W

Therefore, by using the formula for work done relating with emf of battery, thw work done and power of battery can be calculated.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

When resistors 1 and 2 are connected in series, the equivalent resistance is 16.0 Ω. When they are connected in parallel, the equivalent resistance is 3.0 Ω. What are the smaller resistance and the larger resistance of these two resistors?

A1.0μ¹ócapacitor with an initial stored energy of0.50Jis discharged through a1.0²ÑΩresistor. (a) What is the initial charge on the capacitor? (b) What is the current through the resistor when the discharge starts? Find an expression that gives, as a function of timet, (c) the potential differenceVcacross the capacitor, (d) the potential differenceVRacross the resistor, and (e) the rate at which thermal energy is produced in the resistor.

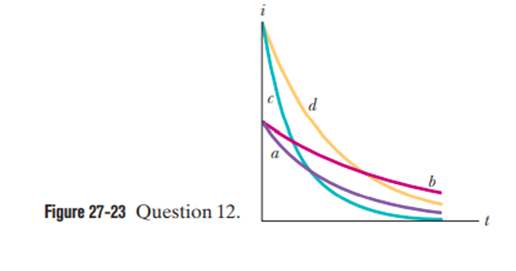

After the switch in Fig. 27-15 is closed on point a, there is current ithrough resistance R. Figure 27-23 gives that current for four sets of values of Rand capacitance C: (1)R0andC0, (2)2R0andC0, (3)R0and2C0, (4)2R0and2C0. Which set goes with which curve?

Initially, a single resistorR1 is wired to a battery. Then resistor R2is added in parallel. Are

(a) the potential difference across R1and

(b) the currenti1 through R1now more than, less than, or the same as previously?

(c) Is the equivalent resistance R12of R1and R2more than, less than, or equal toR1 ?

(d) Is the total current through R1andR2together more than, less than, or equal to the current through R1previously?

In Figure, ε1=6.00V, ε2=12.0V ,R1=100Ω , R2=200Ω ,andR3=300Ω . One point of the circuit is grounded(V=0) .(a)What is the size of the current through resistance 1? (b) What is the direction (up or down) of the current through resistance 1? (c) What is the size of the current through resistance 2?(d) What is the direction (left or right) of the current through resistance 2? (e) What is the size of the current through resistance 3? (f) What is the direction of the current through resistance 3? (g) What is the electric potential at point A?
