Question: In Fig. 27-77, the ideal batteries have emfs ε1=12.0Vandε2=4.0V, and the resistances are each4.00Ω. What are the (a) size and (b) direction (up or down) ofi1and the (c) size and (d) direction ofi2? (e) Does battery 1 supply or absorb energy, and (f) what is its energy transfer rate? (g) Does battery 2 supply or absorb energy, and (h) what is its energy transfer rate?

Short Answer

Expert verified
  • a) The size of the current i1is 3.0 A .
  • b) The direction of the current i1is downward.
  • c)The size of the currenti1is 1.60 A .
  • d)The direction of the currenti1is downward.
  • e)Battery 1 supplies energy.
  • f) The energy transfer rate of battery 1 is 55.2 W .
  • g)Battery 2 supplies energy.
  • h) The energy transfer rate of battery 2 is 6.40 W .

Step by step solution

01

The given data

  • a)Emf of ideal battery 1,ε1=12.0V. .
  • b)Emf of ideal battery 2,ε2=4.0V.
  • c) The value of each resistance,R=4.0Ω .
02

Understanding the concept of current and energy transfer rate

In the given problem, the current flowing through the entire circuit and the given batteries is given by Kirchhoff’s voltage law. If an amount of current is passing through the positive terminal of the device, then the device is

supplying power to an external circuit; and if the current enters a device at its positive terminal, then that device is absorbing or being supplied with power.

Formulae:

The voltage equation using Ohm’s law,

V =IR (i)

The equivalent resistance for a series combination,

R=∑Rl1n (ii)

The equivalent resistance for a parallel combination,

Req=∑1Rl1n (iii)

Kirchhoff’s voltage law,

∑ClosedloopV=0 (iv)

The power of a battery,

P = IV (v)

Kirchhoff’s junction rule,

Ih=lout (vi)

Here l is the current V is the voltage, and R is the resistance.

03

a) Calculation of the size of the current i1

From the lower left loop, the current valuei1 can be given using equation (i) as follows:
i1=ε1R=12.0V4.0Ω=3.0A

Hence, the size of the current is3.0A .

04

b) Calculation of the direction of the current i1

From the given figure and battery 1 position, the currenti1 direction is found to be downward.

Hence, the direction of the current is downward.

05

c) Calculation of the size of the current i2

Applying the loop rule of equation (iv) to the tall rectangular lop in the center of the figure, the current value from the voltage equation can be given using equation (i) as follows: (proceeding clockwise)

ε2+(+i1R)+(-i2R)+-i22R+-i2R=0ε2+i1R+-5i22R=0i2=2ε2+i1R5R

Substitute the values in the above expression, and we get,

i2=24.0V+(3.0A)×4.0Ω54.0Ωi2=1.60A

Hence, the size of the current is 1.60 A.

06

d) Calculation of the direction of the current i2

From the assumption of part (c) calculations, the currenti2 direction is found to be downward.
Hence, the direction of the current is downward.

07

e) Calculation to know whether battery 1 supply or absorb energy

Battery 1 is supplying this power since the current is in the "forward" direction through the battery.

Hence, battery 1 supplies energy.

08

f) Calculation of the energy transfer rate of the battery 1

Applying the junction rule of equation (vi), the current through battery 1 can be given as follows:

i=i1+i2=3.0A+1.60A=4.60A

Now, the rate of energy transferred by the battery to the circuit can be given using equation (v) as follows:

P = (4.60 A) (12.0 V)

=55. 2 W

Hence, the value of the energy transfer rate is 55.2 W.

09

g) Calculation to know whether battery 2 supply or absorb energy

Battery 2 is supplying this power since the current is in the "forward" direction through the battery.

Hence, battery 1 supplies energy.

10

h) Calculation of the power of the battery 2

Now, the rate of energy transferred by battery 2 is given using the given data in equation (v) as follows:

P = (1.60 A) (4.0 V)
= 6.40 W

Hence, the value of the energy transfer rate is 6.40 W .

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

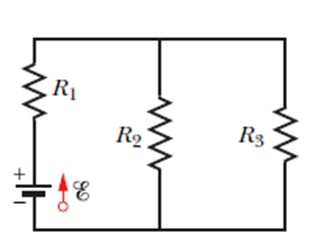

Question: In Figure, the resistances are,R1=2.00Ω,R2=5.00Ω and the battery is ideal. What value of R3maximizes the dissipation rate in resistance 3?

In the circuit of Fig.27-65, ε=1.2kV, C=6.5μ¹ó, R1=R2=R3=0.73²ÑΩ. With C completely uncharged, switch S is suddenly closed (att=0). At t=0, what are (a) current i1in resistor 1, (b) currenti2in resistor 2, and (c) currenti3in resistor 3? At t=∞(that is, after many time constants), what are (d) i1, (e)i2, and (f) i3? What is the potential differenceV2across resistor 2 at (g) t=0and (h) t=∞? (i) SketchV2versustbetween these two extreme times.

A 5.0 A current is set up in a circuit for 6.0 min by a rechargeable battery with a 6.0 V emf. By how much is the chemical energy of the battery reduced?

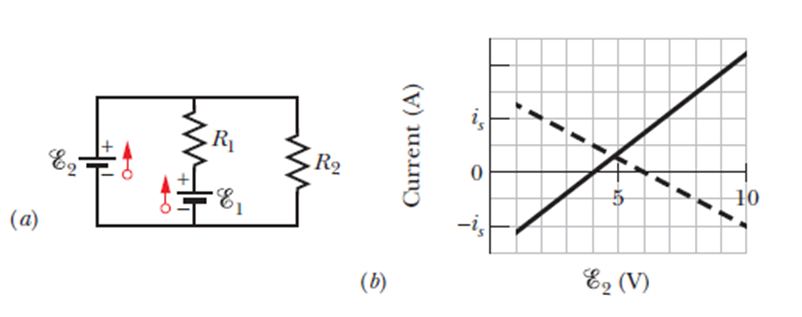

Both batteries in Figure
