Chapter 27: 10Q (page 794)

Cap-monster maze.In Fig. 27-22, all the capacitors have a capacitance of60渭颁, and all the batteries have an emf of 10 V. What is the charge on capacitor C? (If you can find the proper loop through this maze, you can answer the question with a few seconds of mental calculation).

Short Answer

Expert verified

The charge on capacitor C is60渭颁.

Step by step solution

01

Step 1: Given

V=10VC=6.0渭贵

02

Determining the concept

Here, use the formula for the charge in terms of the voltage and the capacitor. When the capacitors are connected in series with battery, voltage remains same through the capacitors.

Formulae are as follow:

q=CV

Where, C is capacitance,V is potential difference, q is charge

03

Determining the charge on capacitor C

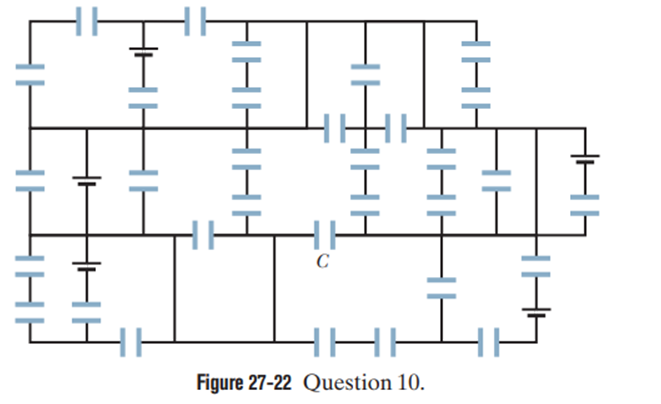

Consider the loop as shown in figure 27-22 in which the capacitor C is connected in series with the battery shown by the path in red.

So, the voltage across capacitor C is 10 V

Now, the charge is as follow,

q=CVq=6.0脳10q=60渭颁

Hence, the charge on capacitor C is60渭颁

Therefore, first find the voltage through the capacitors. From that, find the charge through the capacitors.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

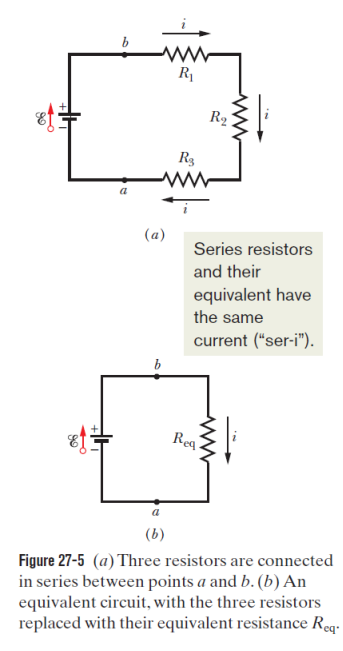

What is the equivalent resistance of three resistors, each of resistance R, if they are connected to an ideal battery (a) in series with one another and (b) in parallel with one another? (c) Is the potential difference across the series arrangement greater than, less than, or equal to that across the parallel arrangement?

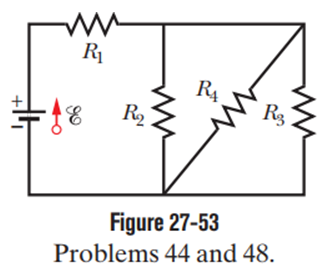

In Fig. 27-53, the resistors have the values R1=7.00惟, R2=12.00惟, and R3=4.00惟, and the ideal battery鈥檚 emf is蔚=24.0V. For what value of R4will the rate at which the battery transfers energy to the resistors equal (a)60.0 W, (b) the maximum possible rate Pmax, and (c) the minimum possible rate Pmin? What are (d)Pmaxand (e)Pmin?
