A 5.20 gbullet moving at 672 m/sstrikes a 700 gwooden block at rest on a frictionless surface. The bullet emerges, travelling in the same direction with its speed reduced to 428 m/s. (a) What is the resulting speed of the block? (b) What is the speed of the bullet–block centre of mass?

Short Answer

Expert verified
  1. The resulting speed of the block is,v2=1.81m/s
  2. The speed of the bullet-block center of mass is,vcom=4.96m/s

Step by step solution

01

Step 1: Given Data

The mass of the bullet is,mbullet=5.20g=0.0052kg.

The initial velocity of the bullet is,vi→=672m/s.

The mass of the wooden block is,mblock=700g=0.700kg.

The reduced speed of the bullet is, v→1=428m/s.

02

Determining the concept

By using conservation of momentum, we can find the resulting speed of the block and the speed of the bullet-block center of mass.

Formulas are as follow:

The conservation of momentum,mbulletvi→=mbulletv1→+mblockv2→

The velocity of the center of mass,
vcom→=mbulletvi→mbullet+mblock

Where, are masses of bullet and block, role="math" localid="1661487619547" vcom→,vi→,v1→,v2→are velocity vectors.

03

(a) Determining the resulting speed of the block

Choosealong the initial direction of motion and apply momentum conservation,

mbulletvi→=mbulletv1→+mblockv2→0.0052×672=0.0052×428+0.700×v2→v2→=0.0052×672-0.0052×4280.700v2→=1.81m/s

Hence, the resulting speed of the block is 1.81 m/s.

04

(b) Determining the speed of the bullet-block center of mass

It is a consequence of momentum conservation that the velocity of the center of mass is unchanged by the collision. Choosing to evaluate it before the collision,

v→com=mbulletvi→mbullet+mblockv→com=0.0052×6720.0052+0.700v→com=4.96m/s

vcom→=mbulletvi→mbullet+mblockvcom→=0.0052×6720.0052+0.700vcom→=4.96m/s

Hence,the speed of the bullet-block center of mass is 4.96 m/s.

Therefore, by using conservation of momentum, the resulting speed and speed of a center of mass of the bullet block system can be found.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

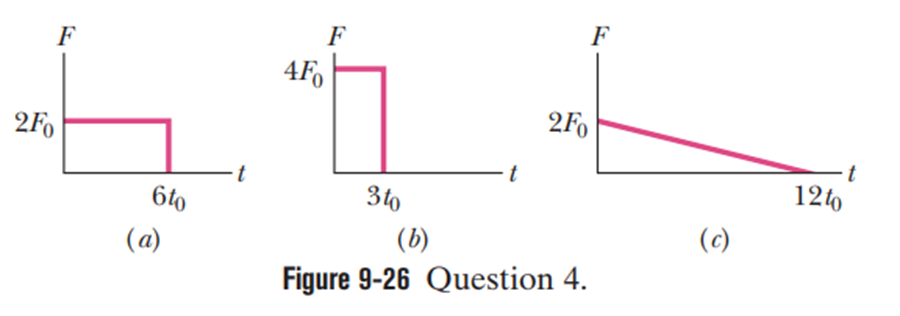

Figure 9-26 shows graphs of force magnitude versus time for a body involved in a collision. Rank the graphs according to the magnitude of the impulse on the body, greatest first.
