Chapter 9: Q23P (page 248)

Until his seventies, Henri LaMothe (Figure 9-48.) excited audiences by belly-flopping from a height of 12 minto 30 cmof water. Assuming that he stops just as he reaches the bottom of the water and estimating his mass, find the magnitude of the impulse on him from the water.

Short Answer

Expert verified

The magnitude of the impulse from the water, J=1.1脳103kg.m/s

Step by step solution

01

Understanding the given information

The estimated mass of Henri,m=70kg

The height above the water,h=12m

The depth of water, d=30cm1m100cm=0.30m

02

Concept and Formula used for the given question

We can use the equation of impulse relating to the change in momentum to calculate the impulse of water. The speed of Henri at the surface of the water can be calculated using the kinematic equation which is given as.

J=鈭�PP=mv2-v1vf2=vi2+2ay

03

Calculation for the magnitude of the impulse on him from the water

The kinematic equation

vf2=vi2+2ay

Using this equation to calculate the velocity of Henri when he touches the surface of the water, we get

vf=0m/s2+2脳9.8m/s2脳12=15.34m/s

Now, using the impulse-momentum theorem, the impulse by the water is,

J=鈭�P=m脳v2-v1=70kg脳0m/s-15.34m/s=-1.1脳103kg.m/s

So, the magnitude of impulse is,

J=1.1脳103kg.m/s

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

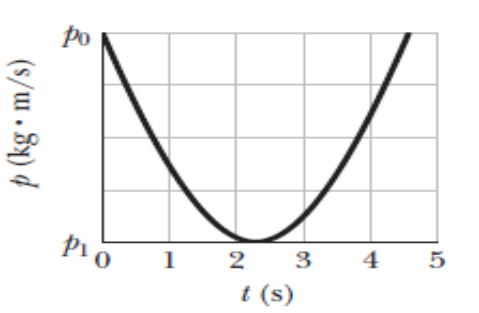

At time t = 0 , a ball is struck at ground level and sent over level ground. The momentum p versus t during the flight is given by Figure (with p0 = 6.0 kg.m/s and p1 = 4.0 kg.m/s). At what initial angle is the ball launched? (Hint: find a solution that does not require you to read the time of the low point of the plot.)

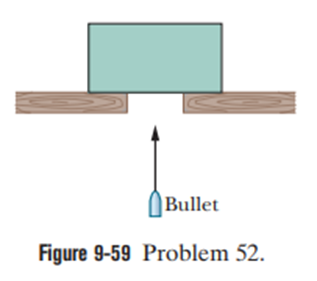

In Fig. 9-59, a 10 gbullet moving directly upward at 1000 m/sstrikes and passes through the center of mass of a 5.0 kgblock initially at rest. The bullet emerges from the block moving directly upward at 400 m/s. To what maximum height does the block then rise above its initial position?

What are (a) The xcoordinate and (b) The ycoordinates of the Center of mass for the uniform plate as shown in figure -9-38 If L=5.0cm

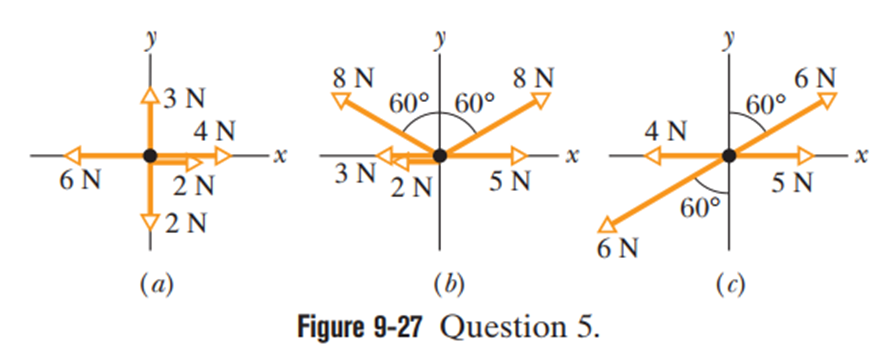

The free-body diagrams in Fig. 9-27 give, from overhead views, the horizontal forces acting on three boxes of chocolates as the boxes move over a frictionless confectioner鈥檚 counter. For each box, is its linear momentum conserved along the x-axis and the y-axis?

Speed de amplifier.In Fig. 9-74, block 1 of mass m1 slides along an xaxis on a frictionless floor at speed 4.00 m/s. Then it undergoes a one-dimensional elastic collision with stationary block 2 of massm2=2.00m. Next, block 2 undergoes a one-dimensional elastic collision with stationary block 3 of massm3=2.00m2. (a) What then is the speed of block 3? Are (b) the speed, (c) the kinetic energy, and (d) the momentum of block 3 is greater than, less than, or the same as that of the initial values for block 1?
