A slab of copper of thickness b=2.00mmis thrust into a parallelplatecapacitor of plate area A=2.40cm2and plate separationd=5.00mm , as shown in Fig. 25-57; the slab is exactly halfway between the plates.(a) What is the capacitance after the slab is introduced? (b) If a chargeq=3.40μCis maintained on the plates, what is the ratio of the stored energy before to that after the slab is inserted? (c) How much work is done on the slab as it is inserted? (d) Is the slab sucked in or must it be pushed in?

Short Answer

Expert verified
  1. Capacitance after the slab introduced is 0.708pF
  2. Ratio of stored energy before to that after the slab is inserted is 1.67
  3. Work done on the slab is -5.44J
  4. The slab is sucked in.

Step by step solution

01

The given data

  • Thickness of slabb=2.00×10-3m
  • Plate area of the capacitorA=2.40×10-4m2
  • Plate separationd=5.00×10-3m
  • Charge q=3.40×10-6C
02

Understanding the concept of the work and energy

When the capacitor is charged, the energy is stored in it. This energy is written in terms of charge and capacitance of the capacitor. Some work is done when the slab is inserted between the plates. The work done is equal to the change in the energy when the slab is inserted between the plates.

We need to use the capacitance formula and energy stored formula of parallel plate capacitor to find the capacitance and the energy stored respectively. Using the work-energy principle, we can find the work done on the slab.

Formulae:

The energy stored between the capacitor plates,U=q22C ...(i)

Here, q is charge, U is energy stored in capacitor, and C is capacitance of the capacitor.

The capacitance of the capacitor plates,C=ε0Ad ...(ii)

Here, C is capacitance, ε0 is the permittivity of the free space, A is the area of cross-section, and d is the separation between the plates.

The work done due to the energy change, W=∆U ...(iii)

Here, W is work done, and ∆Uis the change in energy.

03

(a) Calculation of the capacitance after the slab is introduced halfway between the plates

After the slab is introduced between the plates the length d is reduced to d-b.

Now, the new separation value can be given as:

d-b=5.00mm-2.00mm=3.00mm=3.00×10-3m

The capacitance for the new length is then given using equation (ii) by,

C'=ε0Ad-b=8.85×10-12C2Nm22.40×10-4m23.00×10-3m=0.708pE

Hence, the value of the capacitance is 0.708pE.

04

(b) Calculation of the ratio of stored energy before to that after the slab is inserted

The energy stored in the capacitor before the slab is introduced can be given using equation (i) as follows:

U=q22C........................................................iv

And the energy stored in the capacitor after the slab is introduced that is given using equation (i) as:

U'=12C'V2=q22C'....................................................v

Taking the ratios of equation (iv) and (v), we get the value of the required energy stored ratio as follows:

role="math" localid="1661836854264" UU'=q22Cq2C'=C'C........................................vi

The capacitance of capacitor before the slab introduced is given using equation (ii) as follows:

C=ε0Ad

And the capacitance after slab is introduced that can be given using calculations from part (a) as follows:

C'=ε0Ad-b

Now, substituting the values of capacitances in equation (vi), we get the value of the ratio of the stored energy values as:

UU'=ε0Ad-bε0Ad=dd-b=5.00×10-3m5.00×10-3m-2.00×10-3m=1.67

Hence, the value of the ratio is 1.67.

05

(c) Calculation of the work done on the slab

Substituting the value of equation (i) in equation (iii), we get the value of the work done on the slab as follows:

W=q22C'-q22C=q221C'-1C=q22ε0Ad-b-dSubstitutingthevalueofcapacitancesfrompartb=-q2b2ε0A=-3.40×10-6C22×10-3m2×8.85×10-12C2Nm2×2.40×10-4m2=-5.44J

Hence, the value of the work done is -5.44J.

06

(d) Calculation to state the slab behavior

Since the work done is negative. The slab is sucked in.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

An air-filled parallel plate capacitor has a capacitance of 1.3 pF.The separation of the plates is doubled, and wax is inserted between them. The new capacitance is 2.6pF. Find the dielectric constant of the wax.

What isCeq of three capacitors, each of capacitance C, if they are connected to a battery (a) in series with one another and (b) in parallel? (c) In which arrangement is there more charge on the equivalent capacitance?

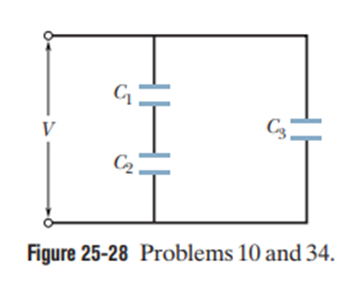

In Figure 25-28 a potential difference V = 100 Vis applied across a capacitor arrangement with capacitancesC1=10.0μ¹ó,C2=5.00μ¹ó,and C3=4.00μ¹ó(a) What is charge q3for capacitor 3? (b) What is the potential difference V3for capacitor 3? (c) What is stored energy for capacitor 3? (d) What is charge q1 for capacitor 1? (e) What is potential difference V1 for capacitor 1? (f) What is stored energy U3 for capacitor 1? (g) What is chargeq1 for capacitor 2? (h) What is potential difference V2for capacitor 2? (i) What is stored energy U2for capacitor 2?

A capacitor of capacitance C1=6.00μ¹óis connected in series with a capacitor of capacitanceC2=4.00μ¹ó, and a potential difference of 200 Vis applied across the pair. (a) Calculate the equivalent capacitance. What are (b) chargeq1and (c) potential differenceV1 on capacitor 1 and (d)q2and (e)V2on capacitor 2?

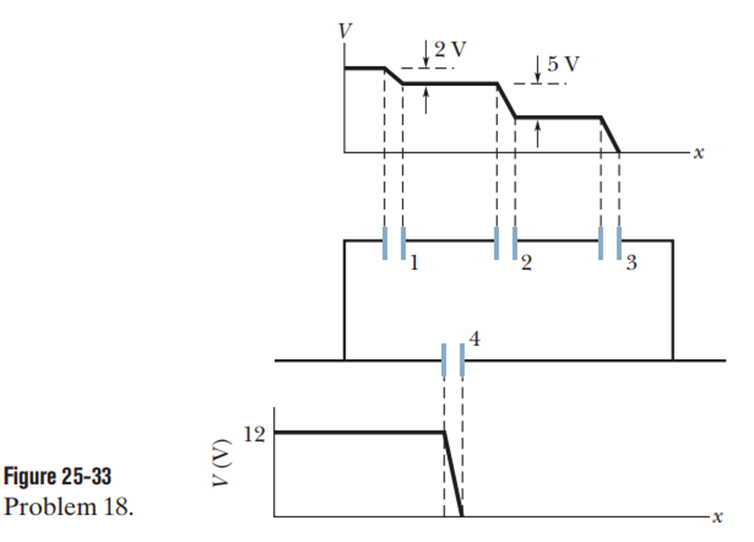

Fig. 25-33 shows a circuit section of four air-filled capacitors that is connected to a larger circuit. The graph below the section shows the electric potential V(x)as a function of position xalong the lower part of the section, through capacitor 4. Similarly, the graph above the section shows the electric potential V(x)as a function of position xalong the upper part of the section, through capacitors 1, 2, and 3. Capacitor 3 has a capacitance of0.80μ¹óWhat are the capacitances of (a) capacitor 1 and (b) capacitor 2?
