Chapter 25: Q2P (page 739)

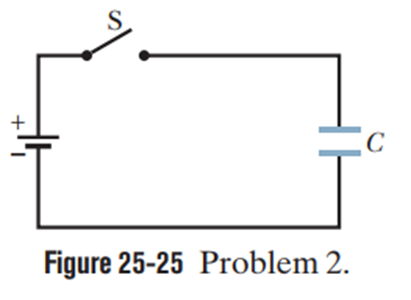

The capacitor in Fig. 25-25 has a capacitance of25渭贵 and is initially uncharged. The battery provides a potential difference of 120 VAfter switchis closed, how much charge will pass through it?

Short Answer

Expert verified

Charge passing through the battery isq=3.0脳10-3C

Step by step solution

01

Given

The capacitance of the capacitor isC=25渭贵10-6F1渭贵=2.5脳105F.

The potential difference is V = 120 V.

02

Determining the concept

Using equation 25-1, find the amount of charge that passes through the battery.

Formulae are as follows:


C=qV

Where C is capacitance, V is the potential difference, and q is the charge on the particle.

03

(a) Determining the charge passing through the battery

From equation 25-1 we know that,

q = CV

The charge passing through the battery is,

q=2.5脳10-5F(120V)=3.0脳10-3C

Hence, the charge passing through the battery is3.0脳10-3C

Therefore, by using the formula for capacitance find the charge passing through the battery.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In Fig. 25-30, the battery has a potential difference of V = 10.0 V, and the five capacitors each have a capacitance of10.0渭贵What is the charge on (a) capacitor 1 and (b) capacitor 2?

You have two plates of copper, a sheet of mica (thickness=0.10mm,魏=5.4), a sheet of glass (), and a slab of paraffin (thickness=2.0mm,魏=7.0). To make a parallel-plate capacitor with the largest C, which sheet should you place between the copper plates?

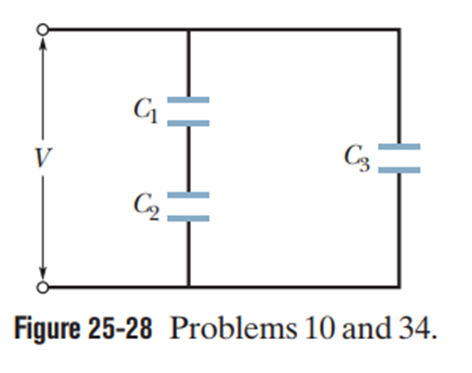

In Fig. 25-28, find the equivalent capacitance of the combination. Assume that C1is10.0渭贵,C2is5.00渭贵,andC3is4.00渭贵

A potential difference of 300 V is applied to a series connection of two capacitors of capacitances C1=2.00渭贵and C2=8.00渭贵.What are (a) charge q1 and (b) potential difference V1on capacitor 1 and (c) q2and (d) V2 on capacitor 2? The chargedcapacitors are then disconnected from each other and from the battery. Then the capacitors are reconnected with plates of the same signs wired together (the battery is not used). What now are (e) q1 , (f) V1 , (g) q2 , and (h) V2? Suppose, instead,the capacitors charged in part (a) are reconnected with plates of oppositesigns wired together. What now are (i) q1, ( j)V1 , (k)q2 , and (l)V2?

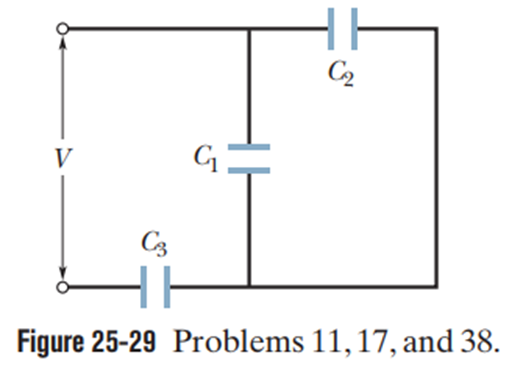

In Fig. 25-29, a potential difference of V= 100.0 V is applied across a capacitor arrangement with capacitances,C1=10.0渭贵,C2=5.00渭贵, andC3=4.00渭贵.If capacitor 3 undergoes electrical breakdown so that it becomes equivalent to conducting wire, (a) What is the increase in the charge on capacitor 1? (b) What is the increase in the potential difference across capacitor 1?
