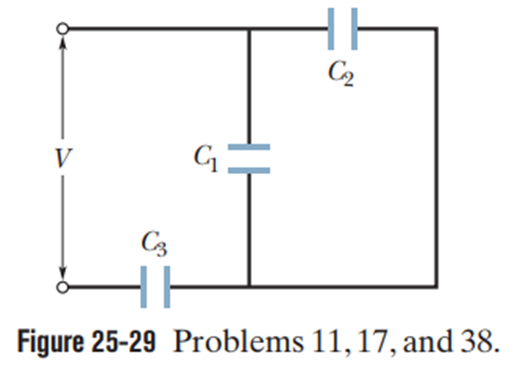

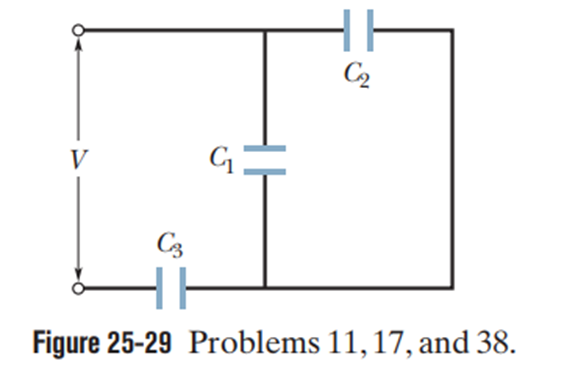

In Fig. 25-29, a potential difference of V= 100.0 V is applied across a capacitor arrangement with capacitances,C1=10.0μ¹ó,C2=5.00μ¹ó, andC3=4.00μ¹ó.If capacitor 3 undergoes electrical breakdown so that it becomes equivalent to conducting wire, (a) What is the increase in the charge on capacitor 1? (b) What is the increase in the potential difference across capacitor 1?

Short Answer

Expert verified

a) The increase in the charge on the capacitor 1 isΔq=7.89×10-4C

b) The increase in the potential difference across capacitors 1 isΔV1=78.9V

Step by step solution

01

Given

V=100VC1=10.0μ¹óC2=5.00μ¹óC3=4.00μ¹ó

02

Determining the concept

First, find the equivalent capacitance by using the formula for series and parallel combinations. Using the equivalent capacitance , find the potential differenceV1acrossC1and also the increase in potential difference. Using the concept of capacitance, find the increase in the charge on the capacitor .

Formulae are as follows:

Ceq=∑j=1nCJ

For parallel combination,

1Ceq=∑j=1n1Cj

For series combination,

q=CV

Where C is capacitance, V is the potential difference, and q is the charge on the particle.

03

(a) Determining the increase in the charge on the capacitor 1

First, find the equivalent capacitance asC1 andC2 are in parallel combination.

C'=C1+C2=10μ¹ó+5μ¹ó=15μ¹ó

ThisC' is a series withC3,

1Ceq=1C'+1C31Ceq=C3+C'C3C'

By substituting the values,

1Ceq=4μF+15μF15μF×4μF=1960μF=13.16μFCeq=3.16μ¹ó

The potential differenceV1 acrossC1 is given by,

V1=CeqVC1+C2

By substituting the value,

V1=3.16×10-6F×100V10×10-6F+5×10-6F=21.1V

Thus, the increase in potential difference across capacitors 1 is,

∆V1=V-V1=100V-21.1V=78.9V

Now, we can find the increase in charge on the capacitor .

Since,

q=CV

We can write,

∆q=C1∆V1∆q=10×10-6F×78.9V=7.89×10-4C

Hence, the increase in the charge on the capacitor 1 is7.89×10-4C

04

(b) Determining the increase in the potential difference across the capacitor

From part a), it can be concluded that the increase in potential difference across capacitors 1 is 78.9 V.

Hence, the increase in the potential difference across capacitors 1 isΔV1=78.9V

Therefore, find the increase in charge and potential difference across the capacitor 1 can be found by using the concept of capacitance and the formula for equivalent capacitance for a series and parallel combination.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

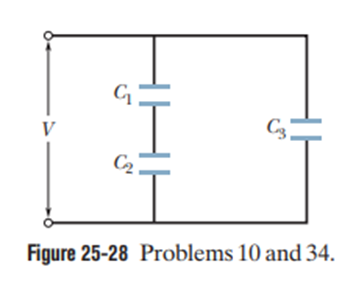

In Fig. 25-28, find the equivalent capacitance of the combination. Assume that C1is10.0μ¹ó,C2is5.00μ¹ó,andC3is4.00μ¹ó

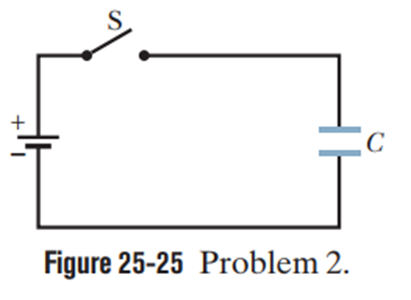

The capacitor in Fig. 25-25 has a capacitance of25μ¹ó and is initially uncharged. The battery provides a potential difference of 120 VAfter switchis closed, how much charge will pass through it?

A potential difference of 300 V is applied to a series connection of two capacitors of capacitances C1=2.00μ¹óand C2=8.00μ¹ó.What are (a) charge q1 and (b) potential difference V1on capacitor 1 and (c) q2and (d) V2 on capacitor 2? The chargedcapacitors are then disconnected from each other and from the battery. Then the capacitors are reconnected with plates of the same signs wired together (the battery is not used). What now are (e) q1 , (f) V1 , (g) q2 , and (h) V2? Suppose, instead,the capacitors charged in part (a) are reconnected with plates of oppositesigns wired together. What now are (i) q1, ( j)V1 , (k)q2 , and (l)V2?

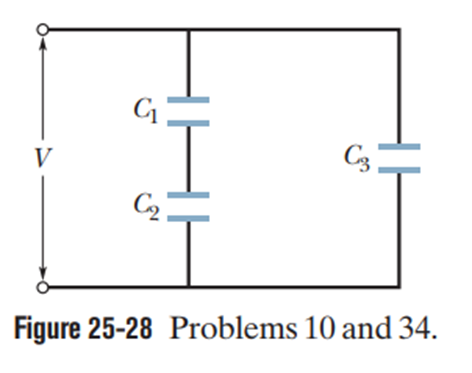

In Figure 25-28 a potential difference V = 100 Vis applied across a capacitor arrangement with capacitancesC1=10.0μ¹ó,C2=5.00μ¹ó,and C3=4.00μ¹ó(a) What is charge q3for capacitor 3? (b) What is the potential difference V3for capacitor 3? (c) What is stored energy for capacitor 3? (d) What is charge q1 for capacitor 1? (e) What is potential difference V1 for capacitor 1? (f) What is stored energy U3 for capacitor 1? (g) What is chargeq1 for capacitor 2? (h) What is potential difference V2for capacitor 2? (i) What is stored energy U2for capacitor 2?

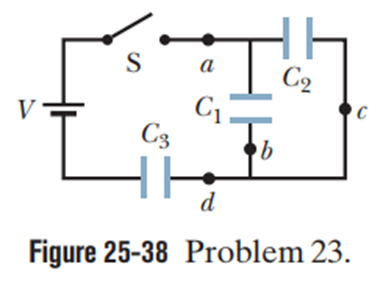

The capacitors in Fig. 25-38 are initially uncharged. The capacitances are C1=4.0μ¹ó,C2=8.0μ¹ó,andC3=12μ¹ó, and the battery’s potential difference is V = 12 VWhen switch S is closed, how many electrons travel through (a) point a, (b) point b, (c) point c, and (d) point d? In the figure, do the electrons travel up or down through (e) point b and (f ) point c?
