In Fig. 25-55,V=12V,C1=C5=C6=6.0μ¹óandC2=C3=C4=4.0μ¹ó. What are (a) the net charge stored on the capacitors and (b) the charge on capacitor 4?

Short Answer

Expert verified
  1. Net charge on all the capacitors is 36μC
  2. The charge on the capacitor 4 is 12μC

Step by step solution

01

The given data

The given values are:

  1. Potential difference,V=12V
  2. Capacitance,C1=C5=C6=6.0μF
  3. Capacitance,C2=C3=C4=4.0μF
02

Understanding the concept of the charge

We find the equivalent capacitance of the capacitor to find the net charge on the system. Using the relation between charge and capacitance we can find the charge on the capacitor.

Formulae:

The equivalent capacitance of a series connection of capacitors,

1Cequivalent=∑1Cj …(¾±).

The equivalent capacitance of a parallel connection of capacitors,

1Cequivalent=∑Cj …(¾±¾±)

The charge stored between the plates of the capacitor, q=CV …(¾±¾±¾±)

03

(a) Calculation of the net charge stored on the capacitor

The capacitor C2and C3and C4are parallel.

Their equivalent capacitance is given by using the given data in equation (ii) as follows:

C'=C234=4.0μ¹ó+4.0μ¹ó+4.0μ¹ó=12μ¹ó

The equivalent capacitance of the capacitors 5 and 6 which are in parallel is given by using equation (ii) as follows:

C''=C56=6.0μ¹ó+6.0μ¹ó=12μ¹ó

Now, the capacitorsC1,C',C''are in series and their equivalent capacitance is given by using equation (i) as follows:

1Csystem=1C1+1C'+1C''1Csystem=C1C'C''C'C''+C1C''+C1C'=6121212×12+6×12+6×12μF=3.0μF

Thus, the value of the charge can be given using equation (iii) as follows:

qsystem=3.0μF×12V=36μC

Hence, the value of the charge of the system is 36μC.

04

(b) Calculation of the charge on capacitor 4

Since, charge of the system is equal to charge on capacitor 1, thus qsys=q1

Then, the voltage across C1is calculated using the given data in equation (iii) as,

V1=q1C1=36μC6μF=6.0V

Then the voltage across series pair of C''andC'is given as:

Vbat=V1+V, where Vis voltage across C''andC'

V=qCeq, where q is the charge on equivalent capacitance of C''andC'andCeqis the equivalent capacitance of C''andC', is given by using equation (ii) in equation (iii) as:

V=36μCC''+C'C''C'=36μ°ä12μ¹ó+12μ¹ó12μ¹ó+12μ¹ó=0.6V

Now, the potential difference across V1is given as:

V1=Vbat-V=12V-6.0V=6.0V

Since, C''=C', therefore, the voltage value is given by,

V'=V''=6.0V2=6.0V

which is also the voltage across V4.

Thus, the charge on the capacitor C4 is given using equation (iii) as:

q4=4.0μ¹ó3.0V=12μ°ä

Hence, the value of the charge is 12μ°ä.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

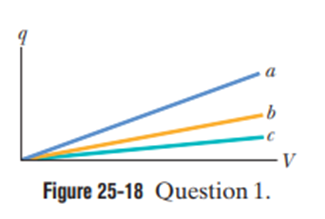

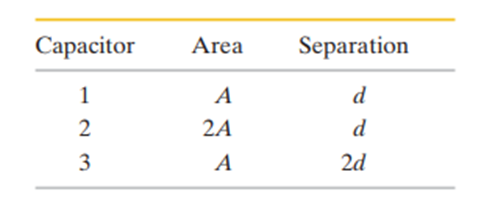

Figure 25-18 shows plots of charge versus potential difference for three parallel-plate capacitors that have the plate areas and separations given in the table. Which plot goes with which capacitor?

Figure shows a parallel plate capacitor of plate areaA=10.5cm2and plate separation 2d=7.12mm . The left half of the gap is filled with material of dielectric constantk1=21.0; the top of the right half is filled with material of dielectric constant k2=42.0. The bottom of the right half is filled with material of dielectric constant k2=58.0. What is the capacitance?

A slab of copper of thickness b=2.00mmis thrust into a parallelplatecapacitor of plate area A=2.40cm2and plate separationd=5.00mm , as shown in Fig. 25-57; the slab is exactly halfway between the plates.(a) What is the capacitance after the slab is introduced? (b) If a chargeq=3.40μCis maintained on the plates, what is the ratio of the stored energy before to that after the slab is inserted? (c) How much work is done on the slab as it is inserted? (d) Is the slab sucked in or must it be pushed in?

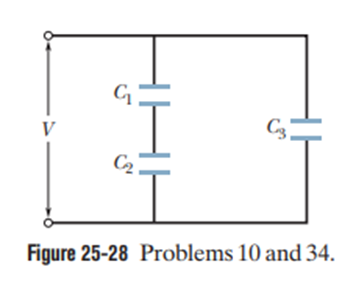

In Figure 25-28 a potential difference V = 100 Vis applied across a capacitor arrangement with capacitancesC1=10.0μ¹ó,C2=5.00μ¹ó,and C3=4.00μ¹ó(a) What is charge q3for capacitor 3? (b) What is the potential difference V3for capacitor 3? (c) What is stored energy for capacitor 3? (d) What is charge q1 for capacitor 1? (e) What is potential difference V1 for capacitor 1? (f) What is stored energy U3 for capacitor 1? (g) What is chargeq1 for capacitor 2? (h) What is potential difference V2for capacitor 2? (i) What is stored energy U2for capacitor 2?
