A car’s bumper is designed to withstand a \(4.0 - {\rm{km}}/{\rm{h}}\) \(\left( {1.1 - {\rm{m}}/{\rm{s}}} \right)\) collision with an immovable object without damage to the body of the car. The bumper cushions the shock by absorbing the force over a distance. Calculate the magnitude of the average force on a bumper that collapses \(0.200{\rm{ m}}\) while bringing a \(900 - {\rm{kg}}\) car to rest from an initial speed of \(1.1{\rm{ m}}/{\rm{s}}\).

Short Answer

Expert verified

The magnitude of the average force on a bumper is \(2722.5{\rm{ N}}\).

Step by step solution

01

Definition of Concept

Work energy theorem: According to the work-energy theorem, the work done of the body equals the change in kinetic energy of the body.

Mathematically,

\(W = K{E_f} - K{E_i}\)

02

Find the magnitude of the average force exerted on the bumper during a collision

According to the work-energy theorem,

\(\begin{aligned}W = \frac{1}{2}m{v^2} - \frac{1}{2}m{u^2}\\Fs = \frac{1}{2}m{v^2} - \frac{1}{2}m{u^2}\end{aligned}\)

Here,\(F\)is the force exerted on the bumper,\(m\)is the mass of car\(\left( {m = 900{\rm{ kg}}} \right)\),\(v\)is the final velocity of the car (\(v = 0\)as the car stops after the collision), u is the initial velocity of the car\(\left( {u = 1.1{\rm{ m}}/{\rm{s}}} \right)\), and\(s\)is the distance covered by the car before it comes to rest after collision\(\left( {s = 0.2{\rm{ m}}} \right)\).

The magnitude of the force exerted on the bumper during collision is,

\(F = \left| {\frac{{m\left( {{v^2} - {u^2}} \right)}}{{2s}}} \right|\)

Putting all known values,

\(\begin{aligned}F = \left| {\frac{{\left( {900{\rm{ kg}}} \right) \times \left( {{{\left( 0 \right)}^2} - {{\left( {1.1{\rm{ m}}/{\rm{s}}} \right)}^2}} \right)}}{{2 \times \left( {0.2{\rm{ m}}} \right)}}} \right|\\ = 2722.5\;{\rm{N}}\end{aligned}\)

Therefore, the required force exerted on bumper is \(2722.5\;{\rm{N}}\).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A \(75.0 - {\rm{kg}}\) person climbs stairs, gaining \(2.50{\rm{ meters}}\) in height. Find the work done to accomplish this task.

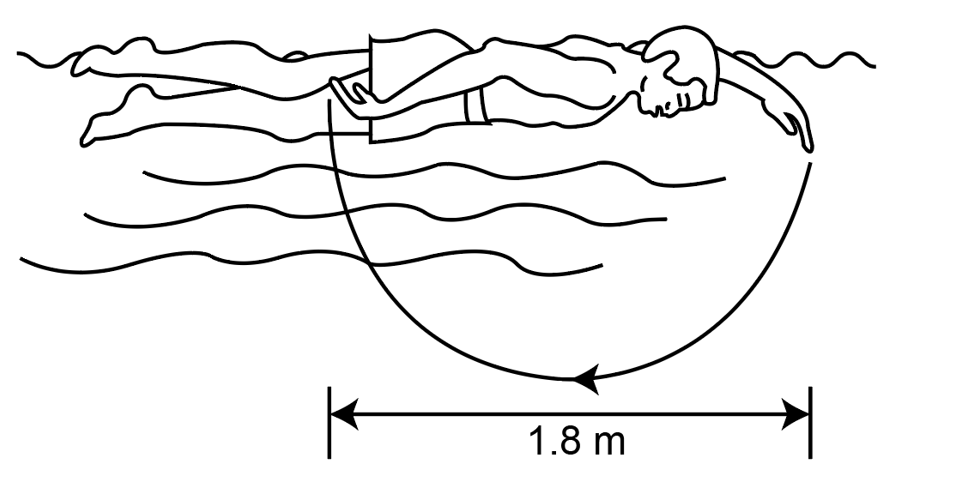

The swimmer shown in Figure 7.44 exerts an average horizontal backward force of 80.0 N with his arm during each 1.80 m long stroke.

(a) What is his work output in each stroke?

(b) Calculate the power output of his arms if he does 120 strokes per minute.

Figure 7.44

Question: (a) Calculate the energy in kJ used by a 55.0-kg woman who does 50 deep knee bends in which her center of mass is lowered and raised 0.400 m. (She does work in both directions.) You may assume her efficiency is 20%.

(b) What is the average power consumption rate in watts if she does this in 3.00 min?

Body fat is metabolized, supplying 9.30 kcal/g, when dietary intake is less than needed to fuel metabolism. The manufacturers of an exercise bicycle claim that you can lose 0.500 kg of fat per day by vigorously exercising for 2.00 h per day on their machine.

(a) How many kcal are supplied by the metabolization of 0.500 kg of fat?

(b) Calculate the kcal/ min that you would have to utilize to metabolize fat at the rate of 0.500 kg in 2.00 h.

(c) What is unreasonable about the results?

(d) Which premise is unreasonable, or which premises are inconsistent?

A shopper pushes a grocery cart 20.0 m at constant speed on level ground, against a 35.0 N frictional force. He pushes in a direction 25.0º below the horizontal.

(a) What is the work done on the cart by friction?

(b) What is the work done on the cart by the gravitational force?

(c) What is the work done on the cart by the shopper?

(d) Find the force the shopper exerts, using energy considerations.

(e) What is the total work done on the cart?
