A pogo stick has a spring with a force constant of 2.50×104N/m, which can be compressed12.0cm. To what maximum height can a child jump on the stick using only the energy in the spring, if the child and stick have a total mass of40.0kg? Explicitly show how you follow the steps in the Problem-Solving Strategies for Energy.

Short Answer

Expert verified

The child can jump up to the maximum height of 0.46m.

Step by step solution

01

Spring Potential Energy

Spring potential energy: When a spring is stretched or compressed by the application of force, the potential energy stored in the spring is,

PEs=12kx2

Here, k is the force constant of the spring k=2.50×104N/mand x is the compression in the spring 12.0 cm.

02

Find the maximum height can a child jump

When a child jumps on the spring, the spring potential energy in the spring gets converted into gravitational potential energy and the child attains some height. Mathematically,

PEs=PEg12kx2=mgh

Here, m is the mass of the childm=40.0kg, g is the acceleration due to gravityg=9.8m/s2, and h is the maximum height attained by the child.

The expression for the maximum height attained by the child is,

h=kx22mg

Putting all known values,

h=2.50×104N/m×12.0cm240.0kg×9.8m/s2=2.50×104N/m×12.0cm×1m100cm22×40.0kg×9.8m/s2=0.46m

Therefore, the child can jump up to the maximum height of 0.46m.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In Example 7.7, we calculated the final speed of a roller coaster that descended \(20{\rm{ m}}\) in height and had an initial speed of \(5{\rm{ m}}/{\rm{s}}\) downhill. Suppose the roller coaster had had an initial speed of \(5{\rm{ m}}/{\rm{s}}\) uphill instead, and it coasted uphill, stopped, and then rolled back down to a final point 20m below the start. We would find in that case that it had the same final speed. Explain in terms of conservation of energy.

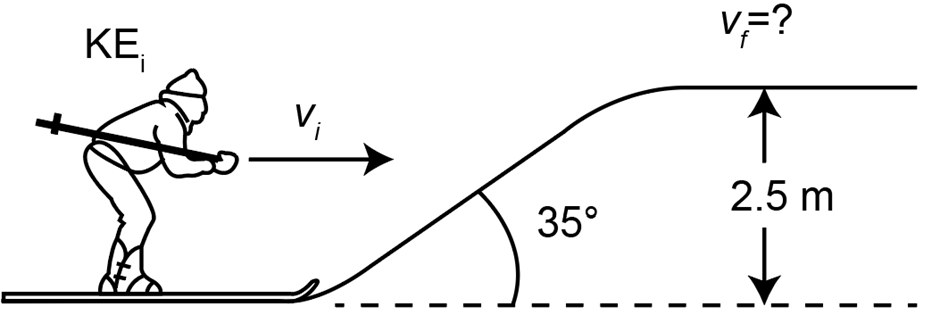

A 60.0-kgskier with an initial speed of12.0m/scoasts up a2.50mhigh rise as shown in Figure 7.40. Find her final speed at the top, given that the coefficient of friction between her skis and the snow is0.0800. (Hint: Find the distance traveled up the incline assuming a straight-line path as shown in the figure.)

Figure 7.40 The skier’s initial kinetic energy is partially used in coasting to the top of a rise.

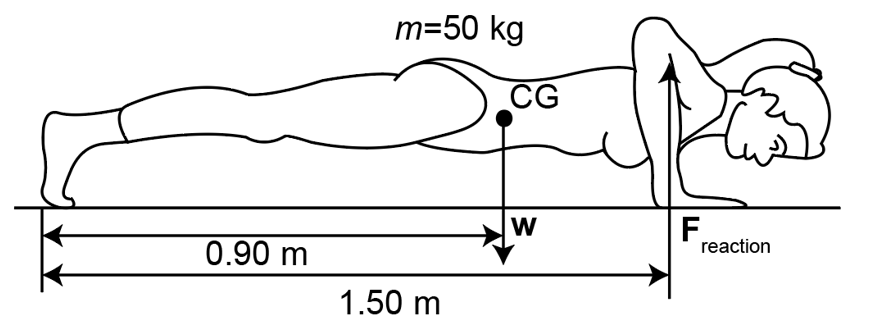

(a) Calculate the force the woman in Figure 7.46 exerts to do a push-up at constant speed, taking all data to be known to three digits.

(b) How much work does she do if her center of mass rises 0.240 m?

(c) What is her useful power output if she does 25 push-ups in 1 min? (Should work done lowering her body be included? See the discussion of useful work in Work, Energy, and Power in Humans.

Figure 7.46 Forces involved in doing push-ups. The woman’s weight acts as a force exerted downward on her center of gravity (CG).

Confirm the value given for the kinetic energy of an aircraft carrier in Table 7.1. You will need to look up the definition of a nautical mile (1 knot = 1 nautical mile/h).

A shopper pushes a grocery cart 20.0 m at constant speed on level ground, against a 35.0 N frictional force. He pushes in a direction 25.0º below the horizontal.

(a) What is the work done on the cart by friction?

(b) What is the work done on the cart by the gravitational force?

(c) What is the work done on the cart by the shopper?

(d) Find the force the shopper exerts, using energy considerations.

(e) What is the total work done on the cart?
