Chapter 27: Q21PE (page 997)

A diffraction grating has 2000 lines per centimeter. At what angle will the first-order maximum be for 520nm -wavelength green light?

Short Answer

Expert verified

The first order maximum is obtained as 5.970.

Step by step solution

01

Given data

Grating lines on the diffraction grating are 2000 liner per cm, which means that the distance between the two slits isd=1cm20001m100cm=5.0脳10-6m

The wavelength of the green light is位=520nm10-9m1nm=5.20脳10-7m

The order of maximum is 1.

02

Evaluating the first-order maximum

In order to calculate the angle, we are supposed to firstly find the distance between slits in the grating, for the value of d, and then solve the equation of the constructive interference,

d蝉颈苍胃=尘位

The value here is for 胃when m=1.

胃=sin-1位d=sin-15.2脳10-7m5.0脳10-6m=sin-1(0.104)=5.970

Therefore, the first-order maximum is 5.970.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Assuming the angular resolution found for the Hubble Telescope in Example \(27.5\), what is the smallest detail that could be observed on the Moon?

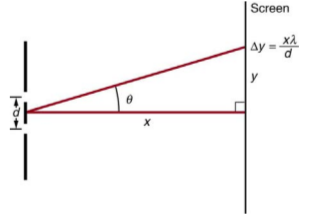

The analysis shown in the figure below also applies to diffraction gratings with lines separated by a distance d. What is the distance between fringes produced by a diffraction grating having 125 lines per centimeter for 600鈥�nmlight, if the screen is 1.05maway?
