In the standing broad jump, one squats and then pushes off with the legs to see how far one can jump. Suppose the extension of the legs from the crouch position isx=0.600m and the acceleration achieved from this position is1.25times the acceleration due to gravity, g. How far can they jump? State your assumptions. (Increased range can be achieved by swinging the arms in the direction of the jump.)

Short Answer

Expert verified

The maximum horizontal distance covered or the distance up to which they can jump, R = 1.51 m.

Step by step solution

01

Stating the given values

  • Extension of the legs from the crouch position,x=0.600m,
  • Acceleration,,a=1.25g=1.25×9.8=12.25m/s2

where g=9.8m/s2is the acceleration due to gravity.

02

Finding the initial velocity with which they are jumping from the ground

We have the one-dimensional kinematic equation for the final velocity, v2 ( or the velocity at which he leaves the ground, vi)

V22=V12+2ax…â¶Ä¦â¶Ä¦â¶Ä¦â¶Ä¦â¶Ä¦â¶Ä¦â¶Ä¦â¶Ä¦â¶Ä¦â¶Ä¦â¶Ä¦â¶Ä¦â¶Ä¦.(1)

On substituting the given values in equation 1, we get

V22=02+2×12.25m/s2×0.600m=14.8m2/s2V2=14.8=3.85m/s

This velocity is equal to the velocity with which he is jumping from the ground. So

03

Finding out the maximum distance up to which they can jump

For a projectile motion, to reach a maximum distance (range), the angle with respect to the horizontal should be 45°, that is .θ=45°

The equation for the range for a projectile is given by

R=Vi2sin(2θi)g…â¶Ä¦â¶Ä¦â¶Ä¦â¶Ä¦â¶Ä¦â¶Ä¦â¶Ä¦â¶Ä¦.(2)

Substituting the given values in equation 2, we get

Rmax=(3.85)2×sin(2×45°)9.8=(3.85)2×sin(2×45°)9.8=14.82×sin90°9.8=1.51m

The maximum horizontal distance covered or the distance up to which they can jump R=1.51m.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Find the following for path C in Figure

(a) the total distance traveled and

(b) the magnitude and direction of the displacement from start to finish.

In this part of the problem, explicitly show how you follow the steps of the analytical method of vector addition.

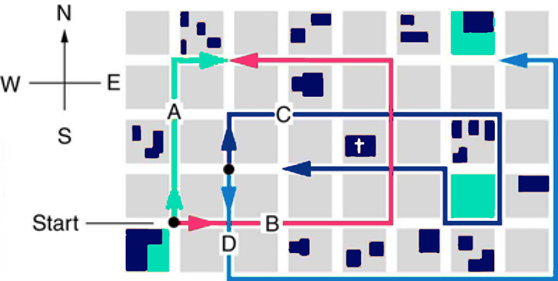

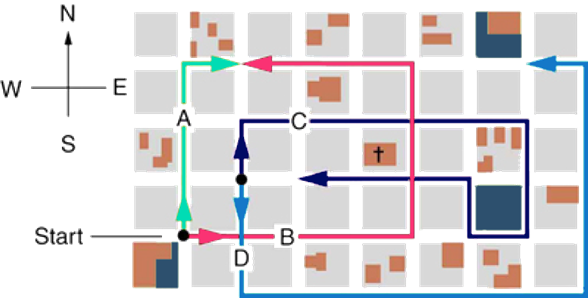

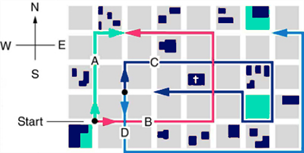

Figure: The various lines represent paths taken by different people walking in a city. All blocks are \(120{\rm{ m}}\) on a side.

In 2007, Michael Carter (U.S.) set a world record in the shot put with a throw of 24.77m. What was the initial speed of the shot if he released it at a height of2.10m and 38.0°threw it at an angle of above the horizontal? (Although the maximum distance for a projectile on level ground is achieved at 45° when air resistance is neglected, the actual angle to achieve maximum range is smaller; thus,38° will give a longer range than45° in the shot put.)

(a) In what direction would the ship have to travel in order to have a velocity straight north relative to the Earth, assuming its speed relative to the water remains 7.00m/s?

(b) What would its speed be relative to the Earth?

Unreasonable Results A commercial airplane has an air speed of m/s due east and flies with a strong tailwind. It travels km in a direction south of east in h.

(a) What was the velocity of the plane relative to the ground?

(b) Calculate the magnitude and direction of the tailwind’s velocity.

(c) What is unreasonable about both of these velocities?

(d) Which premise is unreasonable?

Show that the order of addition of three vectors does not affect their sum. Show this property by choosing any three vectors \({\rm{A}}\), \({\rm{B}}\), and \({\rm{C}}\), all having different lengths and directions. Find the sum \({\rm{A}} + {\rm{B}} + {\rm{C}}\) then find their sum when added in a different order and show the result is the same. (There are five other orders in which \({\rm{A}}\), \({\rm{B}}\), and \({\rm{C}}\) can be added; choose only one.)
