(a) A daredevil is attempting to jump his motorcycle over a line of buses parked end to end by driving up a\(32^\circ \)ramp at a speed of\(40.0{\rm{ m}}/{\rm{s}}\)\(\left( {144{\rm{ km}}/{\rm{h}}} \right)\). How many buses can he clear if the top of the takeoff ramp is at the same height as the bus tops and the buses are\(20.0{\rm{ m}}\)long?

(b) Discuss what your answer implies about the margin of error in this act—that is, consider how much greater the range is than the horizontal distance he must travel to miss the end of the last bus. (Neglect air resistance.)

Short Answer

Expert verified

(a) The daredevil will safely clear the \(7\) buses.

(b) The margin of error is \(4.6\% \).

Step by step solution

01

Horizontal range

When a projectile is launched at an angle to the ground with a certain beginning velocity, it follows a curved parabolic path. The horizontal range is the distance between the point of projection and the place of landing.

02

Step 2: Given data

  • Angle of the inclination of the ramp \(\theta = 32^\circ \).
  • Speed of the motorcycle \(u = 40.0\,{\rm{m}}/{\rm{s}}\).
  • Length of the bus \(L = 20.0\,{\rm{m}}\)
03

(a) Number of buses safely cleared by daredevil

The horizontal range covered by the daredevil is,

\(R = \frac{{{u^2}\sin \left( {2\theta } \right)}}{g}\)

Here\(u\) is the initial velocity,\(\theta \) the angle of projection or angle of the ramp, and\(g\) is the acceleration due to gravity.

Substitute\(40{\rm{ m}}/{\rm{s}}\) for\(u\),\(32^\circ \) for\(\theta \), and\(9.8{\rm{ m}}/{{\rm{s}}^2}\) for\(g\),

\[\begin{array}{c}R = \frac{{{{\left( {40{\rm{ m}}/{\rm{s}}} \right)}^2} \times \sin \left( {2 \times 32^\circ } \right)}}{{\left( {9.8{\rm{ m}}/{{\rm{s}}^2}} \right)}}\\ = 146.74{\rm{ m}}\end{array}\]

The number of buses safely cleared by the daredevil is,

\(n = \frac{R}{L}\)

Here\(R\) is the horizontal range and\(L\) is the length of one bus.

Substitute\(146.74{\rm{ m}}\) for\(R\), and\(20.0{\rm{ m}}\) for\(L\),

\(\begin{array}{c}n = \frac{{146.74{\rm{ m}}}}{{20.0{\rm{ m}}}}\\ = 7.34\end{array}\)

Hence, the daredevil will safely clear the \(7\) buses.

04

(b) Margin of error

The total length of the\(7\) buses is,

\({R_L} = 7 \times L\)

Here\(L\) is the length of one bus.

Substitute\(20.0{\rm{ m}}\) for\(L\),

\(\begin{array}{c}{R_L} = 7 \times \left( {20{\rm{ m}}} \right)\\ = 140{\rm{ m}}\end{array}\)

The margin of error is,

\(\gamma = \frac{{R - {R_L}}}{R} \times 100\% \)

Here\(R\) is the horizontal range and\({R_L}\) is the total length of\(7\) buses.

Substitute\(146.74{\rm{ m}}\) for\(R\), and\(140{\rm{ m}}\) for\({R_L}\),

\(\begin{array}{c}\gamma = \frac{{\left( {146.74{\rm{ m}}} \right) - \left( {140{\rm{ m}}} \right)}}{{\left( {146.74{\rm{ m}}} \right)}} \times 100\% \\ = 4.6\% \end{array}\)

Hence, the margin of error is \(4.6\% \). This is not enough, especially considering that air resistance was neglected by our calculation.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter


Solve the following problem using analytical techniques: Suppose you walk 18.0mstraight west and then 250.0mstraight north. How far are you from your starting point, and what is the compass direction of a line connecting your starting point to your final position? (If you represent the two legs of the walk as vector displacements and , as in Figure, then this problem asks you to find their sum R=A+B.)

The two displacements and add to give a total displacement having magnitude and direction .

Note that you can also solve this graphically. Discuss why the analytical technique for solving this problem is potentially more accurate than the graphical technique.

Suppose you add two vectors A and B. What relative direction between them produces the resultant with the greatest magnitude? What is the maximum magnitude? What relative direction between them produces the resultant with the smallest magnitude? What is the minimum magnitude?

The hat of a jogger running at constant velocity falls off the back of his head. Draw a sketch showing the path of the hat in the jogger’s frame of reference. Draw its path as viewed by a stationary observer.

Which of the following is a vector: a person’s height, the altitude on Mt. Everest, the age of the Earth, the boiling point of water, the cost of this book, the Earth’s population, the acceleration of gravity?

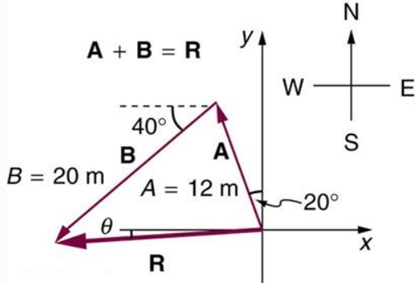

Repeat the problem above, but reverse the order of the two legs of the walk; show that you get the same final result. That is, you first walk leg \({\rm{B}}\), which is \(20.0\;{\rm{m}}\) in a direction exactly \(40^\circ \) south of west, and then leg \({\rm{A}}\), which is \(12.0\;{\rm{m}}\) in a direction exactly \(20^\circ \) west of north. (This problem shows that \({\rm{A}} + {\rm{B}} = {\rm{B}} + {\rm{A}}\).)
