Chapter 9: Q2PE (page 316)

When tightening a bolt, you push perpendicularly on a wrench with aforce of 165 N at a distance of 0.140 m from the center of the bolt. (a)How much torque are you exerting in newton 脳 meters (relative to thecenter of the bolt)? (b) Convert this torque to foot-pounds.

Short Answer

Expert verified

(a)The torque is\(23.1\;{\rm{N}} \cdot {\rm{m}}\).

(b)The torque is\(17.4\;{\rm{foot}} \cdot {\rm{poundal}}\).

Step by step solution

01

Step 1:Given data and torque calculation

  • The force is\(F = 165\;{\rm{N}}\).
  • The perpendicular distance from the hinge is\(r = 0.140\;{\rm{m}}\).

The torque is,

\(\tau = r \times F\)

Here\(r\)is the perpendicular distance and substituting the values we get,

The torque

\(\begin{array}{c}\tau = 0.140 \times 165\\ = 23.1\;{\rm{N}} \cdot {\rm{m}}\end{array}\)

02

Step 2:Calculation of torque in the foot-poundal

(b)

The torque is\(23.1\;{\rm{N}} \cdot {\rm{m}}\).

We know,

\(1\;{\rm{m}} = 3.28\;{\rm{feet}}\)

\(1\;{\rm{N}} = 0.225\;{\rm{pound}}\)

So,

\(\begin{array}{c}\tau = 23.1\;{\rm{N}} \cdot {\rm{m}}\\ = 23.1 \times 0.225 \times 3.28\\ = 17.04\;{\rm{foot}} \cdot {\rm{poundal}}\end{array}\)

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

(a) What force must be exerted by the wind to support a \({\rm{2}}{\rm{.50}}\;{\rm{kg}}\)chicken in the position shown inFigure\({\rm{9}}{\rm{.33}}\)? (b) What is the ratio of this force to the chicken鈥檚 weight? (c) Does this support the contention that the chicken has a relatively stable construction?

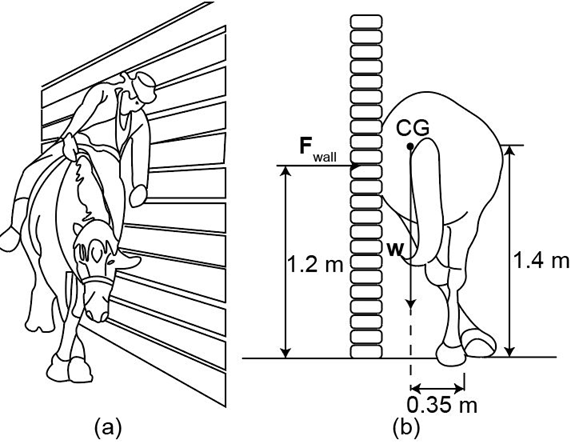

Calculate the magnitude and direction of the force on each foot of the horse inFigure\({\rm{9}}{\rm{.31}}\)(two are on the ground), assuming the center of mass of the horse is midway between the feet. The total mass of the horse and rider is \({\rm{500}}\;{\rm{kg}}\). (b) What is the minimum coefficient of friction between the hooves and ground? Note that the force exerted by the wall is horizontal.

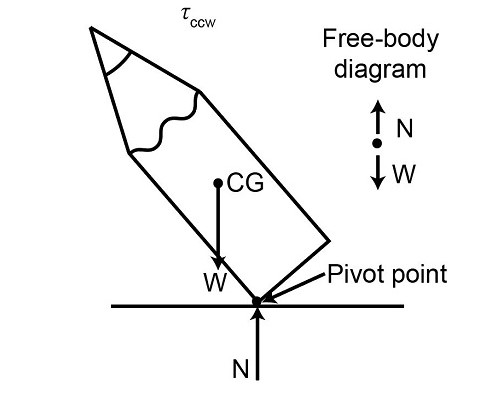

A round pencil lying on its side as inFigure 9.13is in neutral equilibrium relative to displacements perpendicular to its length. What is its stability relative to displacements parallel to its length?
