Chapter 9: Q20 PE (page 317)

Suppose you needed to raise a\(250\;{\rm{kg}}\)mower a distance of\(6.0\;{\rm{cm}}\)above the ground to change a tire. If you had a\(2.0\;{\rm{m}}\)long lever, where would you place the fulcrum if your force was limited to\(300\;{\rm{N}}\)?

Short Answer

Expert verified

The fulcrum should be at a distance of\(1.78\;{\rm{m}}\).

Step by step solution

01

Given Data

The load is\(W = 250\;{\rm{kg}}\).

The distance moved by the load is \(d = 6\;{\rm{cm}}\).

The lever arm is\(l = 2.0\;{\rm{m}}\)

02

Calculation of the force

Let, the fulcrum is at a distance r from the point of load.

The torque by the forces is zero at equilibrium. So,

\(\begin{align}\sum \tau &= 0\\300 \times r &= 250 \times 9.8\left( {2 - r} \right)\\\left( {300 + 2450} \right)r &= 2450 \times 2\\r &= 1.78\;m\end{align}\)

The fulcrum should be at a distance of\(1.78\;{\rm{m}}\).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

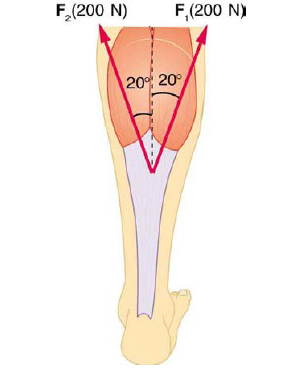

Two muscles in the back of the leg pull on the Achilles tendon as shown inFigure\({\rm{9}}{\rm{.37}}\). What total force do they exert?
