Chapter 9: Q13 CQ (page 315)

Why are the forces exerted on the outside world by the limbs of our bodies usually much smaller than the forces exerted by muscles inside the body?

Short Answer

Expert verified

The limbs are the third-class lever, so the forces exerted on the outside world by the limbs of our bodies are usually much smaller than the forces exerted by muscles inside the body

Step by step solution

01

The given information

The forces exerted on the outside world by the limbs of our bodies.

The forces exerted by muscles inside the body.

02

The concept of Mechanical Advantage

For a lever, the mechanical advantage is,

FoFi=IiIo

HereF鈭�is the output force,Fi input force, l鈭�is the distance of output force from the joint, and liis the distance of the input from the joint.

03

Analysis of the forces

Let the load is on the palm of a person鈥檚 hand. The fulcrum is the elbow joint, then. The biceps muscles exert the required input force.

In the case of the human hand, holding an object, the input force is at a closer distance from the fulcrum than the output force; we can write,

li<I鈭�

So,

Fi>Fo

Hence, the input force is greater than the output force.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Question: A \({\rm{75}}\;{\rm{kg}}\) man stands on his toes by exerting an upward force through the Achilles tendon, as inFigure. (a) What is the force in the Achilles tendon if he stands on one foot? (b) Calculate the force at the pivot of the simplified lever system shown鈥攖hat force is representative of forces in the ankle joint.

InFigure 9.21, the cg of the pole held by the pole vaulter is \(2.00\;{\rm{m}}\)from the left hand, and the hands are \(0.700\;{\rm{m}}\) apart. Calculate the force exerted by (a) his right hand and (b) his left hand. (c) If each hand supports half the weight of the pole inFigure 9.19, show that the second condition for equilibrium(net\(\tau = 0\))is satisfied for a pivot other than the one located at the center of gravity of the pole. Explicitly show how you follow the steps in the Problem-Solving Strategy for static equilibrium described above.

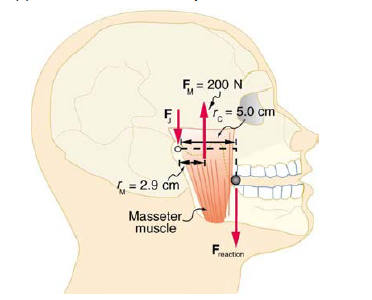

Question: Unlike most of the other muscles in our bodies, the masseter muscle in the jaw, as illustrated inFigure 9.44, is attached relatively far from the joint, enabling large forces to be exerted by the back teeth. (a) Using the information in the figure, calculate the force exerted by the lower teeth on the bullet. (b) Calculate the force on the joint.

A round pencil lying on its side as inFigure 9.13is in neutral equilibrium relative to displacements perpendicular to its length. What is its stability relative to displacements parallel to its length?

Question: A device for exercising the upper leg muscle is shown inFigure, together with a schematic representation of an equivalent lever system. Calculate the force exerted by the upper leg muscle to lift the mass at a constant speed. Explicitly show how you follow the steps in the Problem- Solving Strategy for static equilibrium inApplications of Statistics,Including Problem-Solving Strategies.
