Chapter 22: Q62PE (page 814)

Inside a motor, 30.0 Apasses through a 250-turn circular loop that is 10.0 cmin radius. What is the magnetic field strength created at its center?

Short Answer

Expert verified

The magnetic field strength calculated is 0.047 T.

Step by step solution

01

Step 1:Given data

The Current inside a motor isI=30.0A\

The number of turns in the loop isN=250turns

The radius of the wire isR=10.0cm1m100cm=0.10m

02

Determination of magnetic field

The magnetic impact of electric charges in relative motion and magnetized objects is described by a magnetic field, which is a vector field.

The following equation can be used to obtain the magnetic field strength created at the center,

B=(狈渭0I2R)鈥︹赌︹赌︹赌︹赌︹赌︹赌︹赌�.(1)

Where N,渭0,and R are the number of turns, the magnetic permeability of vacuum, and the radius of the wire, respectively.

03

Evaluating the magnetic field

Substitute the given data in equation (1), and we get,

B=狈渭0I2=250脳4蟺脳10-7N/m2脳30A2脳0.10m=0.047T

Therefore, the magnetic field strength is 0.047 T.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Suppose two long straight wires run perpendicular to one another without touching. Does one exert a net force on the other? If so, what is its direction? Does one exert a net torque on the other? If so, what is its direction? Justify your responses by using the right hand rules.

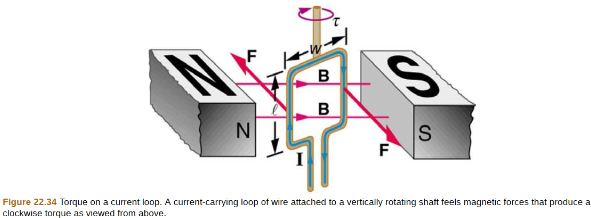

Make a drawing and use RHR-2 to find the direction of the magnetic field of a current loop in a motor (such as in Figure 22.34). Then show that the direction of the torque on the loop is the same as produced by like poles repelling and unlike poles attracting.
