The sides of a small rectangular box are measured to be\({\bf{1}}.{\bf{80}} \pm {\bf{0}}.{\bf{01}}{\rm{ }}{\bf{cm}}\),\({\bf{2}}.{\bf{05}} \pm {\bf{0}}.{\bf{02}}{\rm{ }}{\bf{cm}}\), and\({\bf{3}}.{\bf{1}} \pm {\bf{0}}.{\bf{1}}{\rm{ }}{\bf{cm}}\)long. Calculate its volume and uncertainty in cubic centimeters.

Short Answer

Expert verified

The volume and uncertainty in cubic centimeters is \(V + \Delta V = \left( {11.439 \pm 0.544} \right){\rm{ }}c{m^3}\).

Step by step solution

01

Definition of percentage uncertainty and volume of a rectangle

Uncertainty as a percentage is just relative uncertainty multiplied by\({\rm{100}}\)

The percent uncertainty likewise lacks units since it is a ratio of comparable values.

The volume of a rectangular prism is equal to the area of the base that doubles its height. Therefore, the volume of a rectangular prism formula is given as.

\({\rm{Rectangular prism volume = }}\left( {{\rm{Length x Width x Length}}} \right){\rm{ cubic units}}\)

02

Defining the uncertainty in volume

\(\begin{aligned}{c} V &= lbh\end{aligned}\)

Substitute known values In the above equation.

\(\begin{aligned}{c} V &= 1.80 \times 2.05 \times 3.1\\ &= 11.439{\rm{}}c{m^3}\end{aligned}\)

Determine the uncertainty for volume as below.

\(\begin{aligned}{c}\frac{{\Delta V}}{V} &= \frac{{\Delta L}}{L} + \frac{{\Delta B}}{B} + \frac{{\Delta H}}{H}\\ &= \pm \left( {\frac{{0.01}}{{1.80}} + \frac{{0.02}}{{2.05}} + \frac{{0.1}}{{3.1}}} \right)\times 100\% \\ &= \pm 4.757\% \end{aligned}\)

Solve the above equation foruncertainty for volume as below.

\(\begin{aligned}{c}\Delta V &= \pm 4.757\% \times V\\ &= \pm 4.757\% \times 11.439\\ &= 0.544{\rm{ }}c{m^3} \end{aligned}\)

03

Deriving conclusions

Therefore, the volume and uncertainty in cubic centimeters is \(V + \Delta V = \left( {11.439 \pm 0.544} \right){\rm{ }}c{m^3}\)

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

(a)-What is the efficiency of a cyclical heat engine in which 75.0 kJ of heat transfer occurs to the environment for every 95.0 kJ of Heat transfer into the engine (b) How much work does it produce for 100.0 kJ of heat transfer into the engine?

(a) How far apart are two layers of tissue that produce echoes having round-trip times (used to measure distances) that differ by \[{\rm{0}}{\rm{.750 \mu s}}\]? (b) What minimum frequency must the ultrasound have to see the detail of this small?

Explain why heat pumps do not work as well in very cold climates as they do in milder ones. Is the same true of refrigerators?

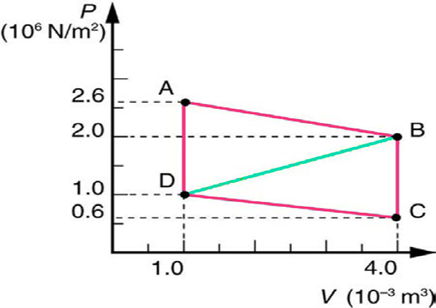

What is the net work output of a heat engine that follows path ABDA in the figure above, with a straight line from B to D? Why is the work output less than for path ABCDA? Explicitly show how you follow the steps in the Problem-Solving Strategies for Thermodynamics.
