Find the frequency range of visible light, given that it encompasses wavelengths from \(380\) to \(760nm\)?

Short Answer

Expert verified

The frequencyrange of visible light is \(395{\rm{ }}GHz\) to \(789{\rm{ }}GHz\).

Step by step solution

01

Definition of frequency

Frequency is the number of waves that pass through a specific spot in a specific length of time.

02

Given information and Formula to be used

The first wavelength is: \({\lambda _1} = 380\;nm = 0.38 \times {10^{ - 6}}\;m\)

The first wavelength is: \({\lambda _2} = 760\;nm = 0.76 \times {10^{ - 6}}\;m\)

The speed of light value is: \(c = 3 \times {10^8}\;m/s\)

For an electromagnetic wave, the relationship between propagation speed, wavelength, and frequency is given by,

\(c = f\lambda \)

03

Calculate the frequency

Consider the given formula and simplify,

We have

\(\begin{aligned} c &= {f_1}{\lambda _1}\\3 \times {10^8} &= {f_1} \times 0.38 \times {10^{ - 6}}\\{f_1} &= 789{\rm{ }}GHz\end{aligned}\)

\(\begin{aligned} c &= {f_2}{\lambda _2}\\3 \times {10^8} &= {f_2} \times 0.76 \times {10^{ - 6}}\\{f_2} &= 395{\rm{ }}GHz\end{aligned}\)

Therefore, frequency range from \(395{\rm{ }}GHz\) to \(789{\rm{ }}GHz\).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Explain why people who have the lens of their eye removed because of cataracts are able to see low-frequency ultraviolet.

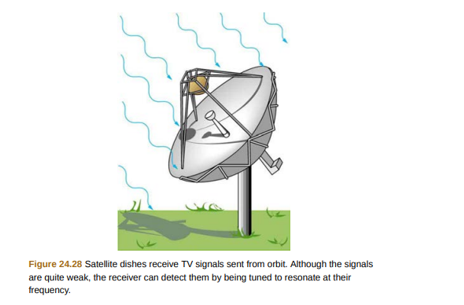

A 2.50-m -diameter university communications satellite dish receives TV signals that have a maximum electric field strength (for one channel) of 7.50μ³Õ/m. (See Figure24.28.) (a) What is the intensity of this wave? (b) What is the power received by the antenna? (c) If the orbiting satellite broadcasts uniformly over an area of 1.50×1013m2(a large fraction of North America), how much power does it radiate?

Conversations with astronauts on lunar walks had an echo that was used to estimate the distance to the Moon. The sound spoken by the person on Earth was transformed into a radio signal sent to the Moon and transformed back into sound on a speaker inside the astronaut's space suit. This sound was picked up by the microphone in the space suit (intended for the astronaut's voice) and sent back to Earth as a radio echo of sorts. If the round-trip time was 2.60 s , what was the approximate distance to the Moon, neglecting any delays in the electronics?

The maximum magnetic field strength of an electromagnetic field is \(5.00 \times {10^{ - 6}}\;T\). Calculate the maximum electric field strength if the wave is traveling in a medium in which the speed of the wave is \(0.75{\rm{ }}c\).

On its highest power setting, a microwave oven increases the temperature of 0.004 kgof spaghetti by 45.0°C in 120 s. (a) What was the rate of power absorption by the spaghetti, given that its specific heat isrole="math" localid="1655872138905" 3.76×103J/kg×°C? (b) Find the average intensity of the microwaves, given that they are absorbed over a circular area 20.0 cmin diameter. (c) What is the peak electric field strength of the microwave?(d) What is its peak magnetic field strength?
