Chapter 23: Q82PE (page 863)

At what frequency will an\(80.0\,{\rm{mF}}\)capacitor have a reactance of\(0.250\,{\rm{\Omega }}\)?

Short Answer

Expert verified

The frequency at which the capacitor have a reactance is obtained as, \(7.96\,{\rm{Hz}}\).

Step by step solution

01

Identification of the given data

The given data can be listed below as,

  • The capacitor resistance is,\({X_C} = 0.250\,{\rm{\Omega }}\).
  • The frequency is, \(C = 80.0\,{\rm{mF}}\).
02

Definition of frequency

Frequency is the measure of the number of cycles or periods per second. The hertz is the SI unit for frequency (Hz). One cycle per second equals one hertz.

03

Evaluating the inductive resistance

The inductive reactance is evaluated using the formula:

\({X_C} = \frac{1}{{2\pi fC}}\)

Solving for the frequency as:

\(f = \frac{1}{{2\pi {X_C}C}}\)

Substitute all the value in the above equation.

\(\begin{aligned} f &= \frac{1}{{2\pi \times 0.250\,{\rm{\Omega }} \times 0.08\,{\rm{F}}}}\\ &= 7.96\,{\rm{Hz}}\end{aligned}\)

Therefore, the capacitance used to produce a reactance is obtained as, \(7.96\,{\rm{Hz}}\).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

(a) If the emf of a coil rotating in a magnetic field is zero at \(t = 0\) , and increases to its first peak at, \(t = 0.100ms\) what is the angular velocity of the coil?

(b) At what time will its next maximum occur?

(c) What is the period of the output?

(d) When is the output first one-fourth of its maximum?

(e) When is it next one-fourth of its maximum?

What is the back emf of a \(120V\) motor that draws \(8.00A\) at its normal speed and \(20.0A\) when first starting?

An RLC series circuit has a 2.50惟resistor, a 100渭Hinductor, and a 80.0渭Fcapacitor. (a) Find the circuit's impedance at120Hz. (b) Find the circuit's impedance at5.00kHz. (c) If the voltage source has Vrms=5.60V, what isIrmsat each frequency? (d) What is the resonant frequency of the circuit? (e) What isIrms at resonance?

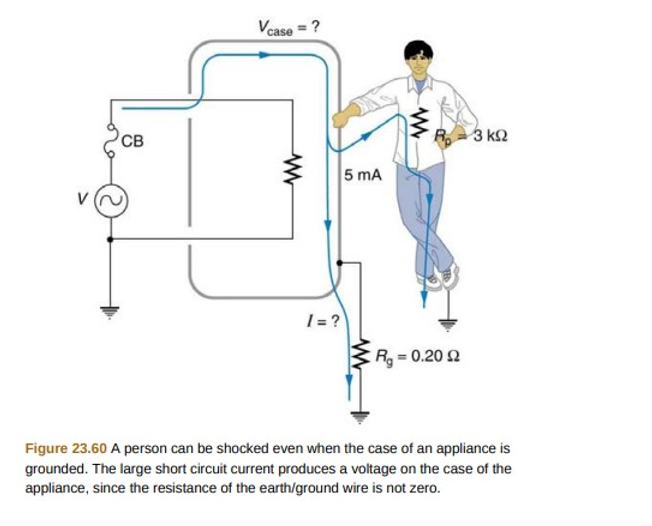

A short circuit to the grounded metal case of an appliance occurs as shown in Figure \({\rm{23}}{\rm{.60}}\). The person touching the case is wet and only has a \({\rm{3}}{\rm{.00 k\Omega }}\) resistance to earth/ground.
