Chapter 23: Q69PE (page 863)

If you want a characteristic RL time constant of 1.00 s, and you have a resistor 500惟, what value of self-inductance is needed?

Short Answer

Expert verified

The value of self-inductance is 500 H

Step by step solution

01

Given Data

The time constant of the RL circuit is 蟿=1.00s

The value of resistance isR=500惟

02

Concept Introduction

The trait of a current-carrying coil that resists or opposes the change in current flowing through it is known as self-inductance. This is mostly owing to the self-induced emf generated by the coil.

03

Calculating the Value of Self-Inductance

In RL circuits, the time constant,蟿, can be expressed as,

蟿=LR鈥︹赌︹赌︹赌︹赌�.(1)

Rearrange equation (1) for the self-inductance and the substitute the given data, such that

L=蟿RL=(1.00s)脳500惟=500H

Therefore, the self-inductance is 500 H

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Camera flashes charge a capacitor to high voltage by switching the current through an inductor on and off rapidly. In what time must the \(0.100{\rm{ }}A\) current through a \(2.00{\rm{ }}mH\) inductor be switched on or off to induce a \(500{\rm{ }}V\) emf?

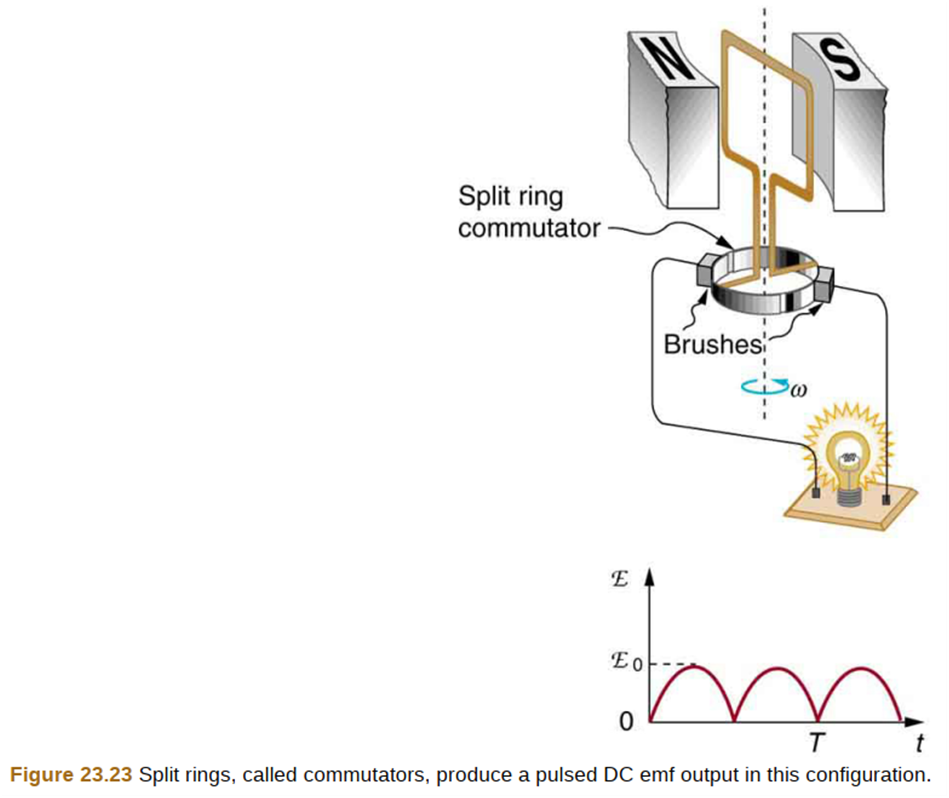

Using RHR-1, show that the emfs in the sides of the generator loop in Figure \(23.23\) are in the same sense and thus add.
