Chapter 23: Q45PE (page 861)

An American traveller in New Zealand carries a transformer to convert New Zealand鈥檚 standard\(240{\rm{ }}V\)to\(120{\rm{ }}V\)so that she can use some small appliances on her trip. (a) What is the ratio of turns in the primary and secondary coils of her transformer?

(b) What is the ratio of input to output current?

(c) How could a New Zealander traveling in the United States use this same transformer to power her\(240{\rm{ }}V\)appliances from\(120{\rm{ }}V\)?

Short Answer

Expert verified
  1. Ratio of turns in the primary and secondary coils is\(2\).
  2. Ratio of input to output current value is\(0.5A\).
  3. Same transformer can be used with reversing primary and secondary.

Step by step solution

01

Definition of current and resistance

Current is the term used to describe the speed at which charge moves. Resistance is the propensity of a substance to oppose the flow of charge.

02

Given information and Formula to be used

a)

\(\begin{array}{l}{V_p} = 240\;V\\{V_s} = 120\;V\end{array}\)

Transformer equation,

\(\frac{{{V_s}}}{{{V_p}}} = \frac{{{N_s}}}{{{N_p}}}\)

b)

\(\begin{array}{l}{V_p} = 240\;V\\{V_s} = 120\;V\end{array}\)

Transformer equation,

\(\frac{{{V_s}}}{{{V_p}}} = \frac{{{I_p}}}{{{I_s}}}\)

c)

\(\begin{array}{l}{V_p} = 240\;V\\{V_s} = 120\;V\end{array}\)

Transformer equation,

\(\frac{{{V_s}}}{{{V_p}}} = \frac{{{N_s}}}{{{N_p}}}\)

03

Ratio of Turns

a)

Consider the transformer equation,

\(\begin{array}{c}\frac{{{V_s}}}{{{V_p}}} = \frac{{{N_s}}}{{{N_p}}}\\\frac{{120}}{{240}} = \frac{{{N_s}}}{{{N_p}}}\\\frac{{{N_p}}}{{{N_s}}} = 2\end{array}\)

Therefore, Ratio of turns in the primary and secondary coils is\(2\).

04

Ratio of Current

b)

Consider the transformer equation

\(\begin{array}{c}\frac{{{V_s}}}{{{V_p}}} = \frac{{{I_p}}}{{{I_s}}}\\\frac{{120}}{{240}} = \frac{{{I_p}}}{{{I_s}}}\\\frac{{{I_p}}}{{{I_s}}} = 0.5\end{array}\)

Therefore, Ratio of input to output current value is \(0.5A\).

05

Use of the transformer

c)

Consider the transformer equation,

\(\begin{array}{c}\frac{{{V_s}}}{{{V_p}}} = \frac{{{N_s}}}{{{N_p}}}\\\frac{{240}}{{120}} = \frac{{{N_s}}}{{{N_p}}}\\\frac{{{N_p}}}{{{N_s}}} = 0.5\end{array}\)

Therefore, same transformer can be used with reversing primary and secondary.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

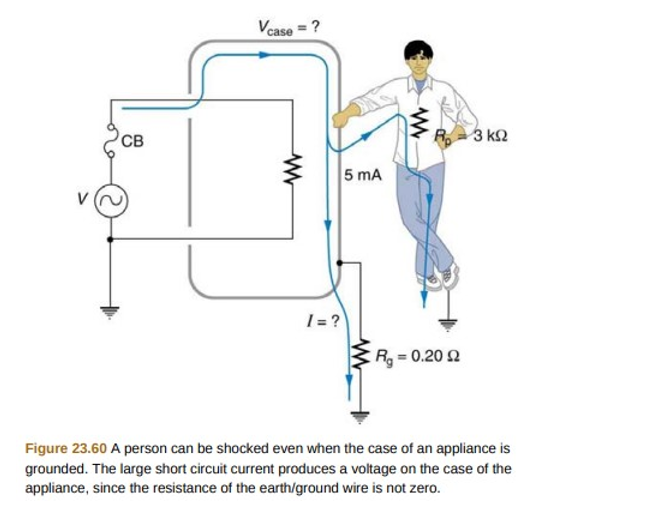

A short circuit to the grounded metal case of an appliance occurs as shown in Figure \({\rm{23}}{\rm{.60}}\). The person touching the case is wet and only has a \({\rm{3}}{\rm{.00 k\Omega }}\) resistance to earth/ground.
