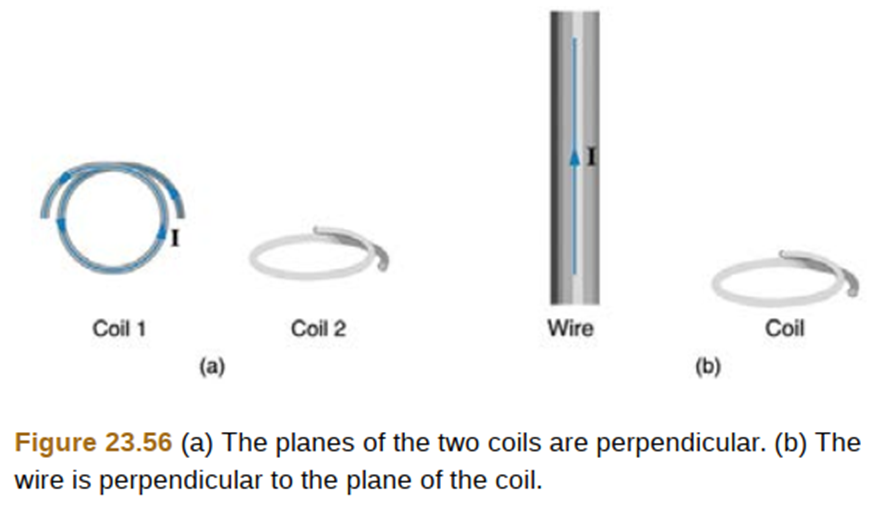

What is the value of the magnetic flux through the coil in figure b due to the wire?

Short Answer

Expert verified

The value of the magnetic flux coil is zero.

Step by step solution

01

Definition of Magnetic flux

The entire magnetic field that travels across a particular area is measured by magnetic flux. It's a helpful tool for describing the effects of the magnetic force on things in a specific location.

02

Calculate the value of flux

The flux created by a contour with an area\(A\)in a constant magnetic field\(B\)that makes an angle\(\phi \)with the plane of the contour can be expressed as,

\({\rm{\Phi = BAcos(}}\phi {\rm{)}}\)鈥︹�︹�︹�︹�︹�︹�︹��(1)

The angle in the given situation is the right angle, hence the flux will be zero from equation (1) because the cosine of a right angle \({\rm{90}}^\circ \)is zero.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Explain what causes physical vibrations in transformers at twice the frequency of the AC power involved.

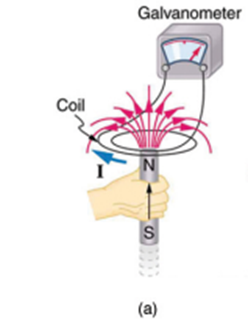

When a magnet is thrust into a coil as in Figure 23.4(a), what is the direction of the force exerted by the coil on the magnet? Draw a diagram showing the direction of the current induced in the coil and the magnetic field it produces, to justify your response. How does the magnitude of the force depend on the resistance of the galvanometer?

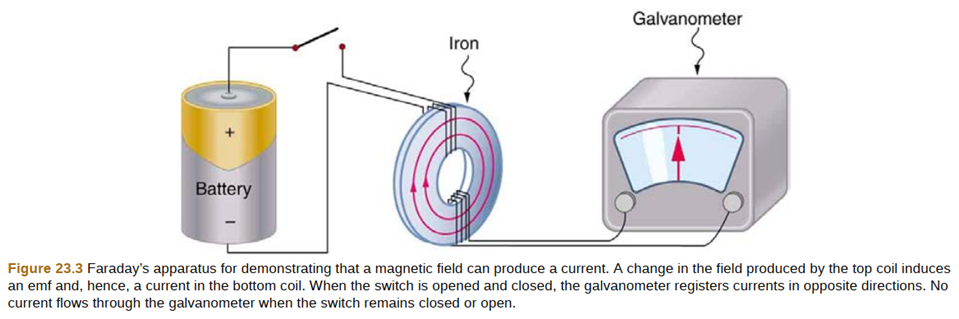

How do the multiple-loop coils and iron ring in the version of Faraday鈥檚 apparatus shown in Figure 23.3 enhance the observation of induced emf?
