Capacitors in Parallel: When capacitors with capacitances C₁, C₂, ,,… are connected in parallel, the equivalent capacitance C_eq equals the sum of the individual capacitances –

${\mathbf{C}}_{\mathbf{eq}}\mathbf{=}{\mathbf{C}}_{\mathbf{1}}\mathbf{+}{\mathbf{C}}_{\mathbf{2}}\mathbf{+}\mathbf{.}\mathbf{.}\mathbf{.}\mathbf{.}\mathbf{.}\mathbf{.}\mathbf{.}\mathbf{\left(}\mathbf{1}\mathbf{\right)}$

Capacitors in Series: When capacitors with capacitances C₁, C₂, ,,… are connected in series, the reciprocal of the equivalent capacitance C_eqequals the sum of the reciprocals of the individual capacitances –

$\frac{\mathbf{1}}{{\mathbf{C}}_{\mathbf{eq}}}\mathbf{=}\frac{\mathbf{1}}{{\mathbf{C}}_{\mathbf{1}}}\mathbf{+}\frac{\mathbf{1}}{{\mathbf{C}}_{\mathbf{2}}}\mathbf{+}\mathbf{.}\mathbf{.}\mathbf{.}\mathbf{.}\mathbf{.}\mathbf{.}\mathbf{.}\mathbf{\left(}\mathbf{2}\mathbf{\right)}$

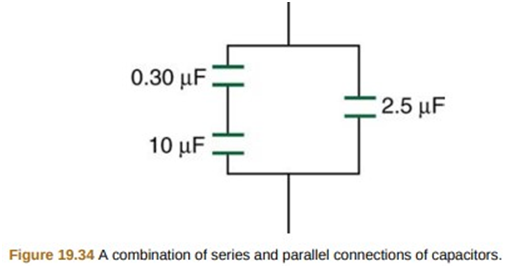

The $10\mathrm{μ¹ó}$and $2.5\mathrm{μ¹ó}$capacitors shown in the red rectangle in Figure l are in parallel and their equivalent capacitance is found from Equation (1):

$\begin{array}{rcl}{\mathbf{C}}_{\mathbf{eq}}& \mathbf{=}& \mathbf{10}\mathbf{}\mathbf{μ¹ó}\mathbf{+}\mathbf{2}\mathbf{.}\mathbf{5}\mathbf{}\mathbf{μ¹ó}\\ & \mathbf{=}& \mathbf{12}\mathbf{.}\mathbf{5}\mathbf{}\mathbf{μ¹ó}\end{array}$

The $12.5\mathrm{μ¹ó}$and $0.30\mathrm{μ¹ó}$capacitors shown in the black rectangle in Figure 2 are in series and their equivalent capacitance is found from Equation (2):

$\begin{array}{rcl}\frac{\mathbf{1}}{{\mathbf{C}}_{\mathbf{eq}}}& \mathbf{=}& \frac{\mathbf{1}}{\mathbf{12}\mathbf{.}\mathbf{5}\mathbf{}\mathbf{μ¹ó}}\mathbf{+}\frac{\mathbf{1}}{\mathbf{0}\mathbf{.}\mathbf{30}\mathbf{}\mathbf{μ¹ó}}\\ {\mathbf{C}}_{\mathbf{eq}}& \mathbf{=}& \frac{\mathbf{(}\mathbf{12}\mathbf{.}\mathbf{5}\mathbf{}\mathbf{μ¹ó}\mathbf{)}\mathbf{×}\mathbf{(}\mathbf{0}\mathbf{.}\mathbf{30}\mathbf{}\mathbf{μ¹ó}\mathbf{)}}{\mathbf{12}\mathbf{.}\mathbf{5}\mathbf{}\mathbf{μ¹ó}\mathbf{+}\mathbf{0}\mathbf{.}\mathbf{30}\mathbf{}\mathbf{μ¹ó}}\\ & \mathbf{=}& \mathbf{0}\mathbf{.}\mathbf{29}\mathbf{}\mathbf{μ¹ó}\end{array}$

Therefore, the value for capacitance is ${\mathrm{C}}_{\mathrm{eq}}=0.29\mathrm{μ¹ó}$.
