The voltage across a membrane forming a cell wall is \(80.0{\rm{ }}mV\) and the membrane is \(9.00{\rm{ }}nm\) thick. What is the electric field strength? (The value is surprisingly large, but correct. Membranes are discussed in Capacitors and Dielectrics and Nerve Conduction—Electrocardiograms.) You may assume a uniform electric field.

Short Answer

Expert verified

Value of the electric field strength is \(8.89 \times {10^6}\;V/m\).

Step by step solution

01

Information Provided

  • Voltage across a membrane is:\(80.0{\rm{ }}mV\)
  • Thickness of the membrane is: \(9.00{\rm{ }}nm\)
02

Relation between potential and electric field and calculation for potential and thickness of membrane.

The potential difference between two points separated by a distance\(d\)in a homogeneous electric field of magnitude\(E\)is\(\Delta V = Ed{\rm{ }}......(1)\).

Now, calculate voltage across the membrane:

\(\begin{array}{c}\Delta V = (80.0mV)\left( {\frac{{1\;V}}{{1000\;V}}} \right)\\\Delta V = 80.0 \times {10^{ - 3}}\;V\end{array}\)

Now calculation for the thickness of the membrane:

\(\begin{array}{c}d = (9.00\;nm)\left( {\frac{{1\;m}}{{{{10}^9}\;nm}}} \right)\\d = 9.00 \times {10^{ - 9}}\;m\end{array}\)

03

Calculation for the electric strength in the membrane.

The electric field strength in the membrane is found by solving Equation for\(E\):

\(E = \frac{{\Delta V}}{d}\)

Entering the values for\(\Delta V\)and\(d\), we obtain:

\(\begin{array}{c}E{\rm{ }} = \frac{{80.0 \times {{10}^{ - 3}}\;V}}{{9.00 \times {{10}^{ - 9}}\;m}}\\E = 8.89 \times {10^6}\;V/m\end{array}\)

Therefore, the value is obtained as \(8.89 \times {10^6}\;V/m\).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Membranes in living cells, including those in humans, are characterized by a separation of charge across the membrane. Effectively, the membranes are thus charged capacitors with important functions related to the potential difference across the membrane. Is energy required to separate these charges in living membranes and, if so, is its source the metabolization of food energy or some other source?

(a) Sketch the equipotential lines near a point charge \( + q\) . Indicate the direction of increasing potential. (b) Do the same for a point charge \( - 3q\) .

What is the strength of the electric field between two parallel conducting plates separated by 1.00 cm and having a potential difference (voltage) between them of 1.50×104V?

Which methods of radiation protection were used in the device shown in the first photo in Figure 32.35? Which were used in the situation shown in the second photo?

Figure 32.35 (a)

Figure 32.35(b)

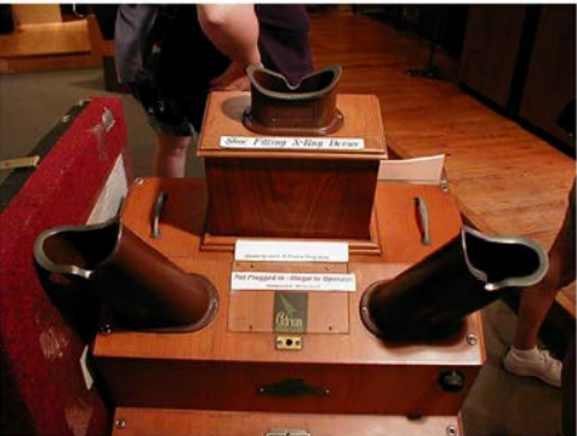

(a) This x-ray fluorescence machine is one of the thousands used in shoe stores to produce images of feet as a check on the fit of shoes. They are unshielded and remain on as long as the feet are in them, producing doses much greater than medical images. Children were fascinated with them. These machines were used in shoe stores until laws preventing such unwarranted radiation exposure were enacted in the 1950s. (credit: Andrew Kuchling ) (b) Now that we know the effects of exposure to radioactive material, safety is a priority. (credit: U.S. Navy)
