Suppose a speck of dust in an electrostatic precipitator has 1.0000×1012 protons in it and has a net charge of -5.00 nC (a very large charge for a small speck). How many electrons does it have?

Short Answer

Expert verified

The number of electrons in the speck of dust is 1.0312×1012.

Step by step solution

01

Charged body

A body is said to be charged when it has unequal number of electrons and protons. If the body has greater number of electrons than protons, the body is said to be negatively charged.

02

Number of electrons responsible for negative charge in the speck of dust

According to the quantization of charge,

Q = ne

Here, Q is the total charge on the body due to excess electrons (Q=-5.00 nC) , is the number of electrons responsible for the negative charge on the body, and is the charge on electron e=-1.6×10-19C.

The number of electrons responsible for the negative charge on body is,

n=Qe

Substituting all known values,

n=-5.00nC1.6×10-19C=3.125×1010

03

Total number of electrons in the speck of dust

The total number of electrons on a negatively charged body is,

nt = ne + n

Here, n is the total number of electrons on an negatively charged body, ne is the number of electrons to neutralize the charge of protons ne=1.0000×1012 , and n is the number of electrons responsible for negative charge on the body n=3.125×1010.

Substituting all known values,

nt=1.0000×1012+3.1250×1010=1.0312×1012

Hence, the number of electrons in the speck of dust is 1.0312×1012.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

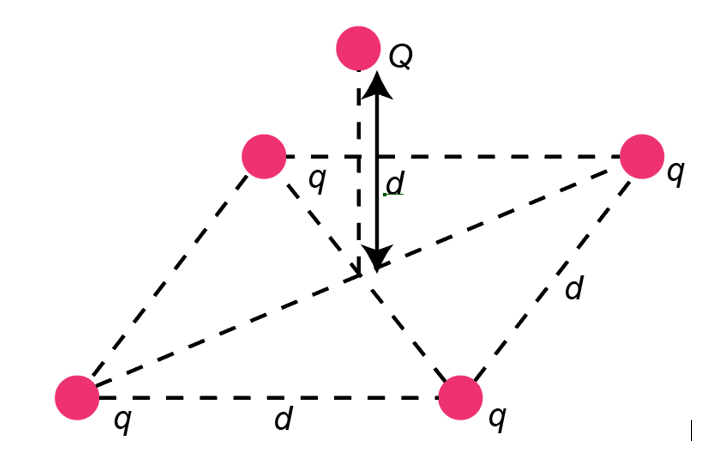

(a) In Figure 18.59, four equal charges \(q\) lie on the corners of a square. A fifth charge \(Q\) is on a mass \(m\) directly above the center of the square, at a height equal to the length \(d\) of one side of the square. Determine the magnitude of \(q\) in terms of \(Q\), \(m\), and \(d\), if the Coulomb force is to equal the weight of \(m\). (b) Is this equilibrium stable or unstable? Discuss.

Figure 18.59 Four equal charges on the corners of a horizontal square support the weight of a fifth charge located directly above the center of the square.

Compare and contrast the Coulomb force field and the electric field. To do this, make a list of five properties for the Coulomb force field analogous to the five properties listed for electric field lines. Compare each item in your list of Coulomb force field properties with those of the electric field—are they the same or different? (For example, electric field lines cannot cross. Is the same true for Coulomb field lines?)

Bare free charges do not remain stationary when close together. To illustrate this, calculate the acceleration of two isolated protons separated by\({\bf{2}}.{\bf{00}}{\rm{ }}{\bf{nm}}\)(a typical distance between gas atoms). Explicitly show how you follow the steps in the Problem-Solving Strategy for electrostatics.

A test charge of \({\rm{ + 2 \mu C}}\) is placed halfway between a charge of \({\rm{ + 6 \mu C}}\) and another of \({\rm{ + 4 \mu C}}\) separated by \(10{\rm{ cm}}\). (a) What is the magnitude of the force on the test charge? (b) What is the direction of this force (away from or toward the \({\rm{ + 6 \mu C}}\)charge)?

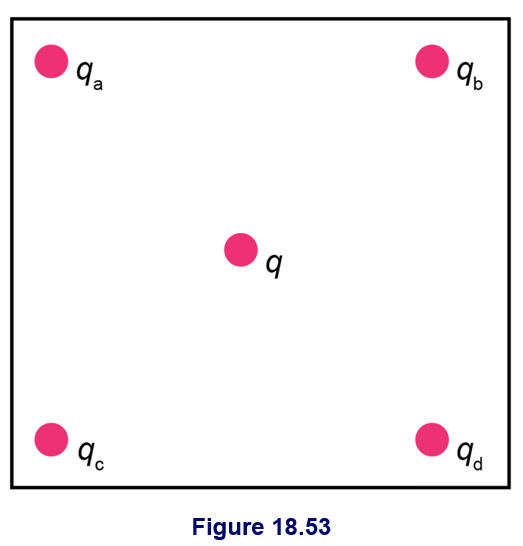

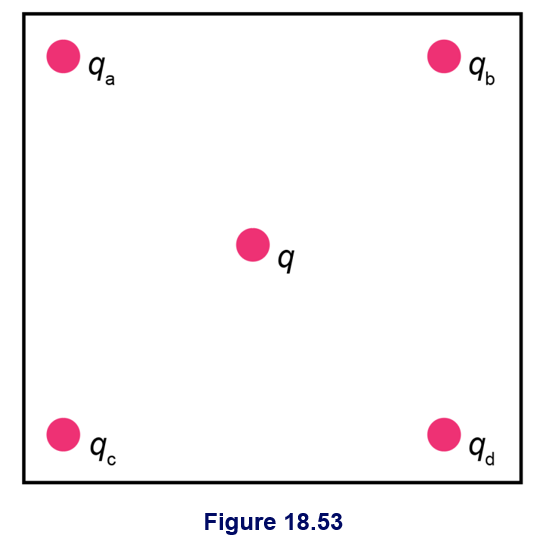

(a) Using the symmetry of the arrangement, determine the direction of the electric field at the center of the square in Figure 18.53, given that\({q_a} = {q_b} = - {\rm{1}}{\rm{.00 }}\mu {\rm{C}}\)and\({q_c} = {q_d} = + {\rm{1}}{\rm{.00 mC}}\). (b) Calculate the magnitude of the electric field at the location of\(q\), given that the square is\(5.00{\rm{ cm}}\)on a side.
