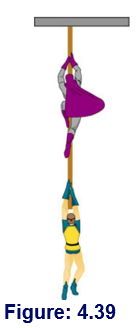

Suppose a 60.0-kg gymnast climbs a rope.

(a) What is the tension in the rope if he climbs at a constant speed?

(b) What is the tension in the rope if he accelerates upward at a rate of 1.50 m/s2?

Short Answer

Expert verified

(a)The tension in the rope with constant speed is 588 N.

(b) The tension in the rope with some acceleration is 678 N.

Step by step solution

01

Theory

Apply Newton’s second law of motion.

\({F_{{\rm{net}}}} = ma\)

\(T - mg = ma\)……………….. (i)

Here, Fnet is the net force, m is the mass of gymnast, T is the tension in the rope, g is the acceleration due to gravity, and a is the acceleration.

02

(a) Determine the tension in the rope when climbing at constant speed

At constant speed the acceleration is zero.

Substitute 60 kg for m, 9.8 m/s2 for g, and 0 for a in equation (i) in the above expression, and we get,

\(\begin{array}{c}T - 60\;{\rm{kg}} \times 9.8\;{\rm{m/}}{{\rm{s}}^{\rm{2}}} = 0\\T = 588\;{\rm{kg}} \cdot {\rm{m/}}{{\rm{s}}^{\rm{2}}}\\T = 588\;{\rm{N}}\end{array}\)

Hence,the tension in the rope with constant speed is 588 N.

03

(b) Determine the tension in the rope with some acceleration

Substitute 60 kg for m, 9.8 m/s2 for g, and 1.50 m/s2 for a in equation (i) in the above expression, and we get,

\(\begin{array}{c}T - 60\;{\rm{kg}} \times 9.8\;{\rm{m/}}{{\rm{s}}^{\rm{2}}} = 60\;{\rm{kg}} \times 1.50\;{\rm{m/}}{{\rm{s}}^{\rm{2}}}\\T = \left( {90 + 588} \right)\;{\rm{kg}} \cdot {\rm{m/}}{{\rm{s}}^{\rm{2}}}\\T = 678\;{\rm{N}}\end{array}\)

Hence, the tension in the rope with some acceleration is 678 N.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

If a constant, nonzero force is applied to an object, what can you say about the velocity and acceleration of the object?

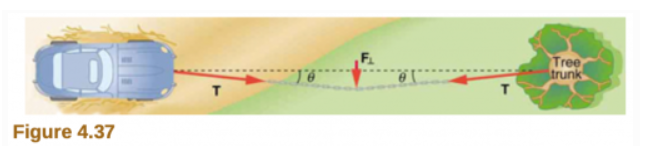

Suppose your car was mired deeply in the mud, and you wanted to use the method illustrated in Figure 4.37 to pull it out.

(a) What force would you have to exert perpendicular to the center of the rope to produce a force of 12,000 N on the car if the angle is 2.00°? In this part, explicitly show how you follow the steps in the Problem-Solving Strategy for Newton’s laws of motion.

(b) Real ropes stretch under such forces. What force would be exerted on the car if the angle increases to 7.00° and you still apply the force found in part (a) to its center?

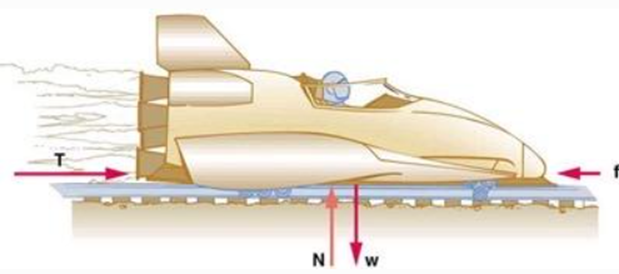

(a) If the rocket sled shown in Figure 4.32 starts with only one rocket burning, what is the magnitude of its acceleration? Assume that the mass of the system is 2100 kg, the thrust T is 2.4×104 N, and the force of friction opposing the motion is known to be 650 N.

(b) Why is the acceleration not one-fourth of what it is with all rockets burning?

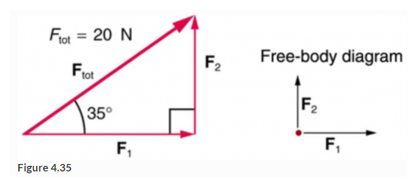

(a) Find the magnitudes of the forces F1 and F2 that add to give the total force Ftot shown in Figure 4.35. This may be done either graphically or by using trigonometry.

(b) Show graphically that the same total force is obtained independent of the order of addition of F1and F2 .

(c) Find the direction and magnitude of some other pair of vectors that add to give Ftot . Draw these to scale on the same drawing used in part (b) or a similar picture.

A freight train consists of two 8.00×104 -kg engines and 45 cars with average masses of 5.50×104 kg.

(a) What force must each engine exert backward on the track to accelerate the train at a rate of 5.00×10–2 m/s2 if the force of friction is 7.50×105 N, assuming the engines exert identical forces? This is not a large frictional force for such a massive system. Rolling friction for trains is small, and consequently trains are very energy-efficient transportation systems.

(b) What is the force in the coupling between the 37th and 38th cars (this is the force each exerts on the other), assuming all cars have the same mass and that friction is evenly distributed among all of the cars and engines?
