Chapter 21: Q21.6-77PE (page 778)

(a) Calculate the capacitance needed to get an \(RC\) time constant of \(1.00 \times {10^3}\;s\) with a \(0.100 - \Omega \) resistor. (b) What is unreasonable about this result? (c) Which assumptions are responsible?

Short Answer

Expert verified
  1. Capacity is \(10000\;F\).
  2. If we know that the earth's capacity is finite, the capacity required is irrational.

Step by step solution

01

Definition of RC constant and resistance.

RC time constant: This measurement informs us how long it will take a cap to charge to a particular voltage level.

Anything that prevents current flow is referred to as "resistance" in this context.

02

Given Information.

  • \(RC\)time constant is:\(1.00 \times {10^3}{\rm{ }}s\)
  • Resistor: \(0.100 - \Omega \).
03

Calculate the capacity needed.

a)

We can calculate the capacity needed to have a time constant of\({10^3}\;s\):

\(\begin{aligned}{c}C = \frac{\tau }{R} = \frac{{{{10}^3}}}{{0.1}}\\C = 10000\;F\end{aligned}\)

Hence, Capacity is \(10000\;F\).

04

Explanation of solution.

(b)

Unreasonable is the capacity needed if we know that earth's capacity is \(1F\).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

What are the largest and smallest resistances you can obtain by connecting a36.0-惟, a50.0-惟, and a700-惟resistor together?

A12.0-Vemf automobile battery has a terminal voltage of16.0Vwhen being charged by a current of10.0A.(a) What is the battery鈥檚 internal resistance?(b) What power is dissipated inside the battery?(c) At what rate (in 潞C/min) will its temperature increase if its mass is20.0kgand it has a specific heat of0.300kcal/kgx0C, assuming no heat escapes?

Explain which battery is doing the charging and which is being charged in Figure 21.45.

When an unknown resistanceRxis placed in a Wheatstone bridge, it is possible to balance the bridge by adjusting R3to be 2500惟. What is RxifR2R1=0.625?

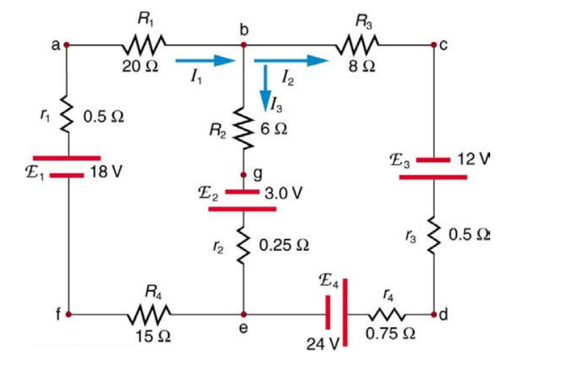

Apply the loop rule to loops \({\rm{abgefa}}\) and \({\rm{cbgedc}}\) in Figure \({\rm{21}}{\rm{.47}}\).
