Chapter 8: Q 8.31 (page 355)

Modify the Ising program to simulate a three-dimensional Ising model with a simple cubic lattice. In whatever way you can, try to show that this system has a critical point at aroundT=4.5.

Short Answer

Expert verified

Therefore, we used the Ising program to simulate a three-dimensional Ising model with a simple cubic lattice.

Step by step solution

01

Given information

Modify the Ising program to simulate a three-dimensional Ising model with a simple cubic lattice. System has a critical point at around T=4.5.

02

Explanation

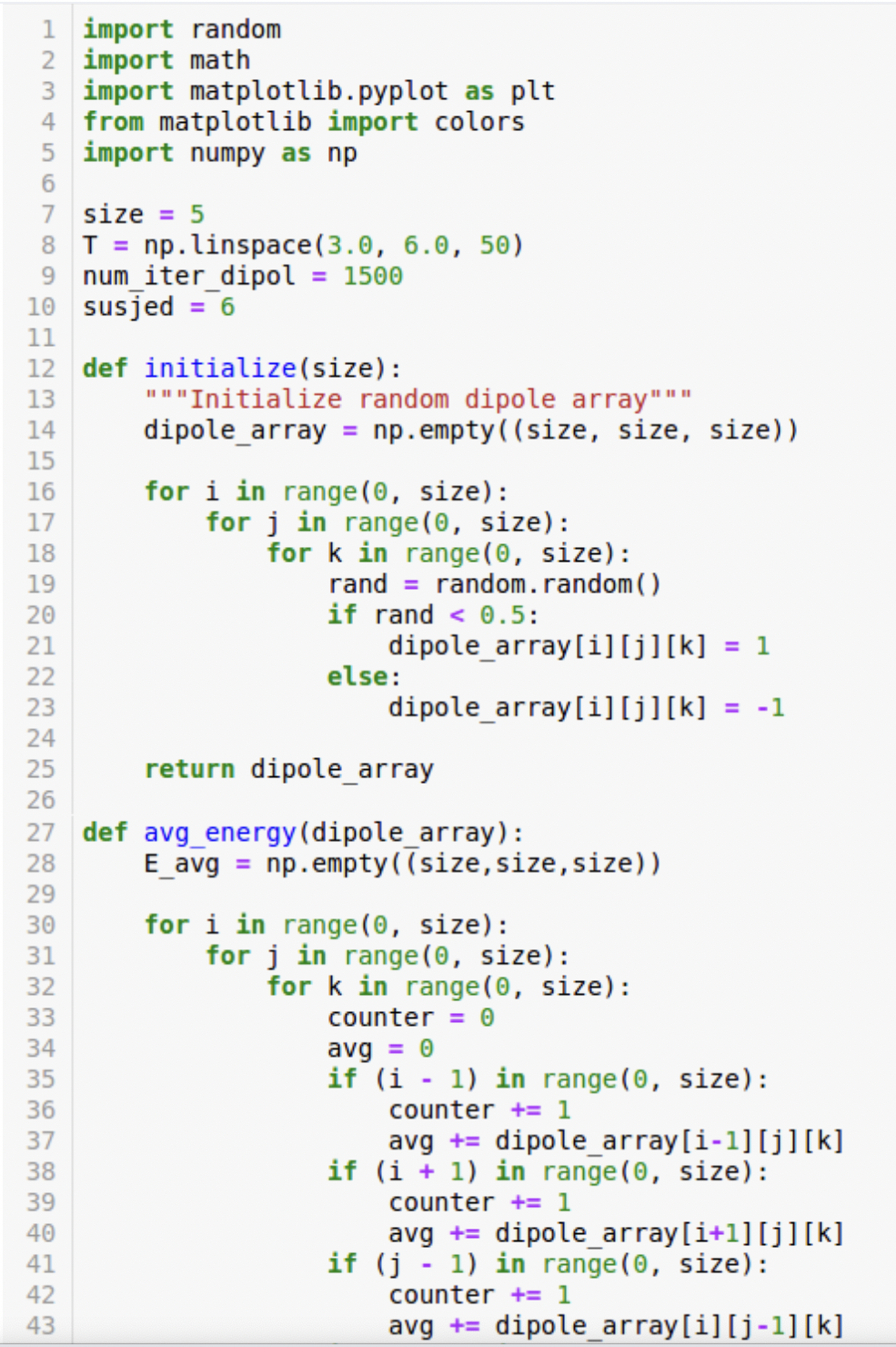

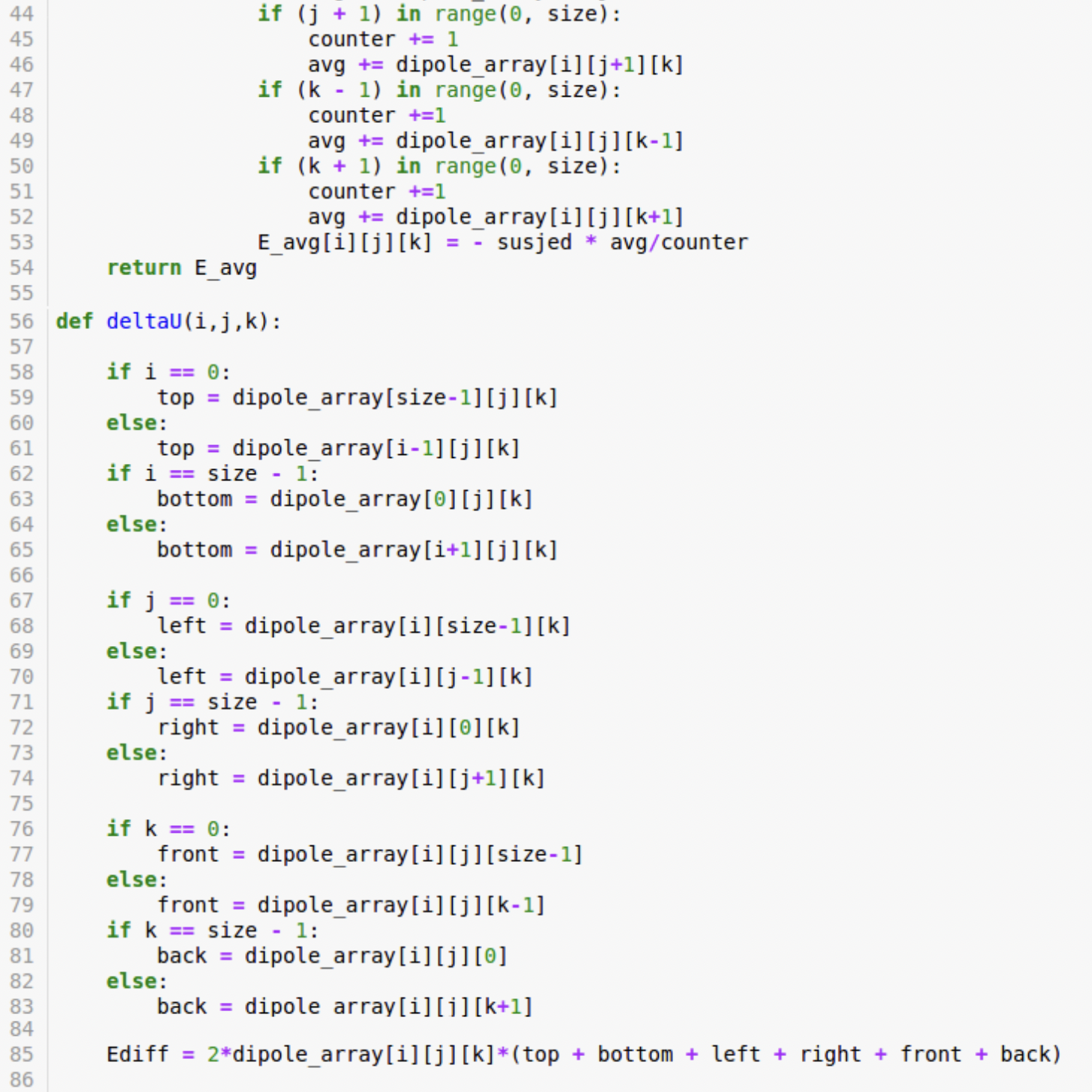

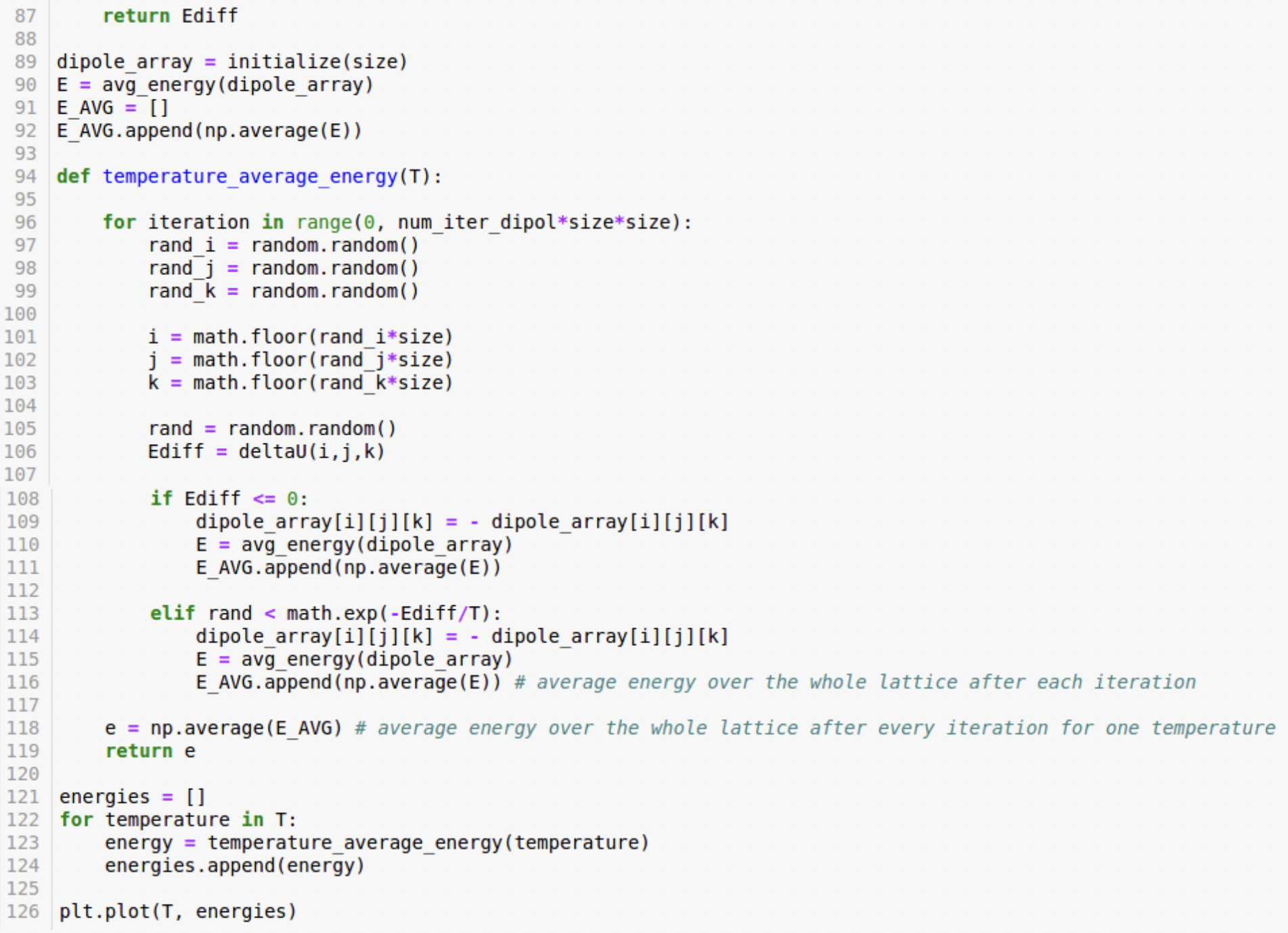

Code for 3D Ising model

03

Explanation

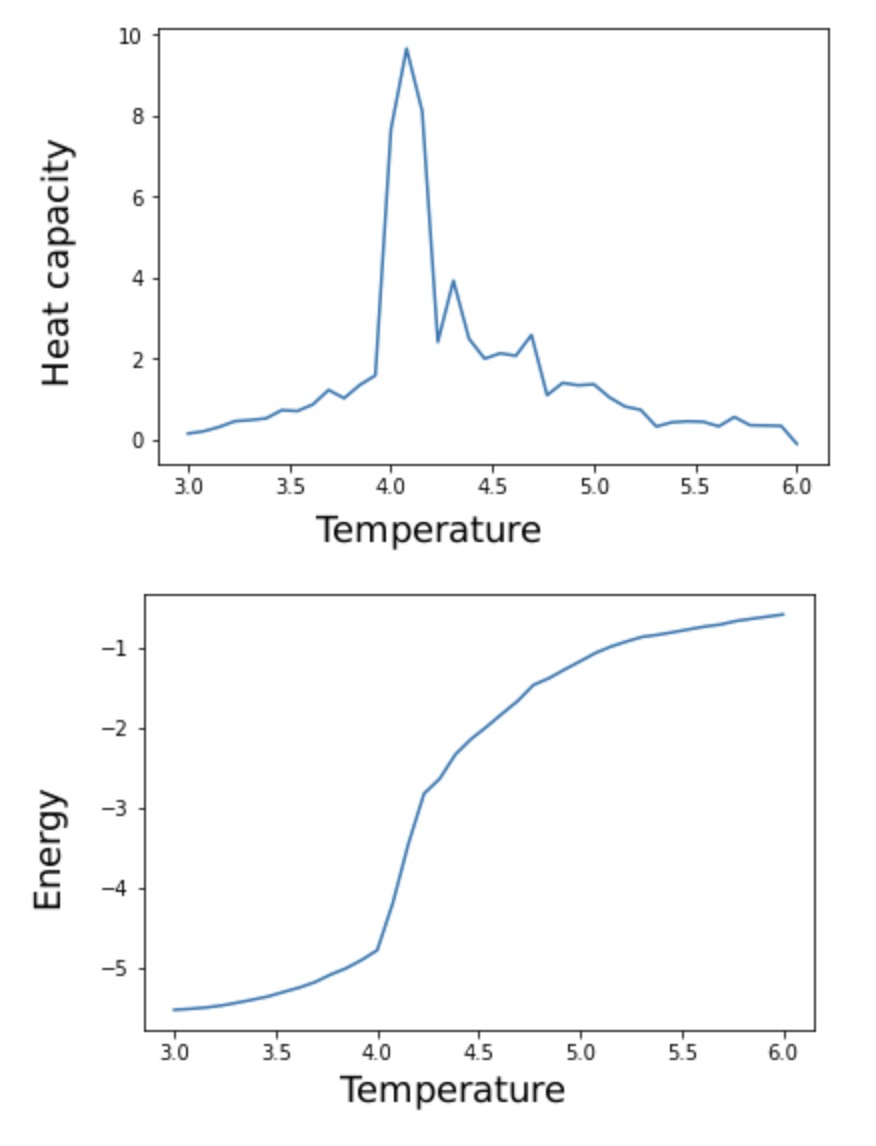

Because there were only 40points in this temperature range, the graph is "pointy." The number of iterations for these graphs was 5000, therefore the creation of these plots took a lengthy time.
