Chapter 8: Q. 8.15 (page 341)

For a two-dimensional Ising model on a square lattice, each dipole (except on the edges) has four "neighbors"-above, below, left, and right. (Diagonal neighbors are normally not included.) What is the total energy (in terms of 蔚) for the particular state of the 4脳4square lattice shown in Figure 8.4?

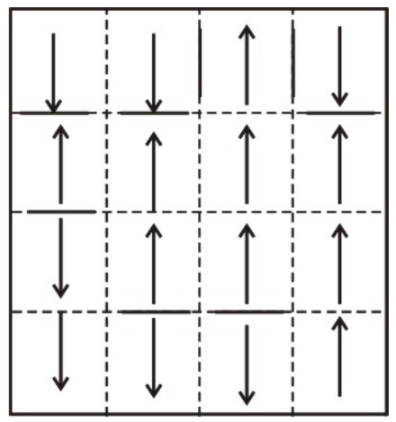

Figure 8.4. One particular state of an Ising model on a 4脳4square lattice (Problem 8.15).

Short Answer

Expert verified

The total energy =-4蔚

Step by step solution

01

Step 1. Given information

The 4脳4Lattice has 24 nearest - neighbor interactions of which 10 are between anti parallel dipoles and 14 are between parallel dipoles

02

Step 2.  To find the total energy,

In the figure the anti-parallel interactions are made in solid lines whereas the parallel interactions are made with parallel dotted lines.

The total energy=

U=10蔚+14(-蔚)

=-4蔚

Thus, the total energy=-4蔚
