Chapter 2: Q2.7-15Q (page 93)

What vector in \({\mathbb{R}^{\bf{3}}}\) has homogeneous coordinates \(\left( {\frac{1}{2}, - \frac{1}{4},\frac{1}{8},\frac{1}{{24}}} \right)\)?

Short Answer

Expert verified

The vector is \(\left( {12, - 6,3} \right)\).

Step by step solution

01

State the homogeneous coordinate of the vector

Generally, for the vector\(\left( {x,y,z} \right)\), thehomogeneous coordinates are\(\left( {X,Y,Z,H} \right)\), where\(H \ne 0\).

The vector entries can be obtained as shown below:

\(x = \frac{X}{H}\), \(y = \frac{Y}{H}\), and \(z = \frac{Z}{H}\)

02

Obtain the vector that has homogeneous coordinates

Compare thehomogeneous coordinates\(\left( {\frac{1}{2}, - \frac{1}{4},\frac{1}{8},\frac{1}{{24}}} \right)\)with the generalhomogeneous coordinates \(\left( {X,Y,Z,H} \right)\)to get\(X = \frac{1}{2}\),\(Y = - \frac{1}{4}\),\(Z = \frac{1}{8}\), and\(H = \frac{1}{{24}}\).

Now, obtain the vector entries, as shown below:

\(\begin{array}{l}x = \frac{{1/2}}{{1/24}}\\x = 12\end{array}\),

\(\begin{array}{l}y = \frac{{ - 1/4}}{{1/24}}\\y = - 6\end{array}\),

And

\(\begin{array}{l}z = \frac{{1/8}}{{1/24}}\\z = 3\end{array}\)

Thus, the vector is \(\left( {12, - 6,3} \right)\).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Suppose the first two columns, \({{\bf{b}}_1}\) and \({{\bf{b}}_2}\), of Bare equal. What can you say about the columns of AB(if ABis defined)? Why?

Consider the following geometric 2D transformations: D, a dilation (in which x-coordinates and y-coordinates are scaled by the same factor); R, a rotation; and T a translation. Does D commute with R? That is, is \(D\left( {R\left( {\bf{x}} \right)} \right) = R\left( {D\left( {\bf{x}} \right)} \right)\)for all \({\bf{x}}\) in \({\mathbb{R}^{\bf{2}}}\)? Does D commute with T? Does R commute with T?

Let \(A = LU\) be an \(LU\) factorization. Explain why A can be row reduced to U using only replacement operations. (This fact is the converse of wht was proved in the text.)

In Exercises 33 and 34, Tis a linear transformation from \({\mathbb{R}^2}\) into \({\mathbb{R}^2}\). Show that T is invertible and find a formula for \({T^{ - 1}}\).

33. \(T\left( {{x_1},{x_2}} \right) = \left( { - 5{x_1} + 9{x_2},4{x_1} - 7{x_2}} \right)\)

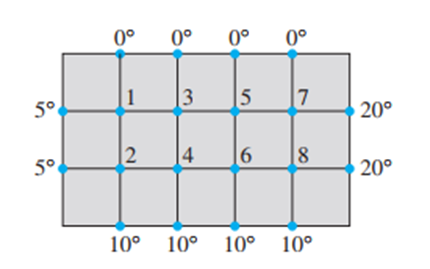

The solution to the steady-state heat flow problem for
the plate in the figure is approximated by the solution to the
equation\(A{\bf{x}} = {\bf{b}}\);where\(b = \left( {5,15,0,10,0,10,20,30} \right)\)and

\(A = \left[ {\begin{array}{*{20}{c}}4&{ - 1}&{ - 1}&{}&{}&{}&{}&{}\\{ - 1}&4&0&{ - 1}&{}&{}&{}&{}\\{ - 1}&0&4&{ - 1}&{ - 1}&{}&{}&{}\\{}&{ - 1}&{ - 1}&4&0&{ - 1}&{}&{}\\{}&{}&{ - 1}&0&4&{ - 1}&{ - 1}&{}\\{}&{}&{}&{ - 1}&{ - 1}&4&0&{ - 1}\\{}&{}&{}&{}&{ - 1}&0&4&{ - 1}\\{}&{}&{}&{}&{}&{ - 1}&{ - 1}&4\end{array}} \right]\)

(Refer to Exercise 33 of Section 1.1.) The missing entries in Aare zeros. The nonzero entries of A lie within a band along the main diagonal. Such band matricesoccur in a variety of applications and often are extremely large (with thousands of rows and columns but relatively narrow bands).

  1. Use the method of Example 2 to construct an LU factorization of A, and note that both factors are band matrices (with two nonzero diagonals below or above the main diagonal). Compute \(LU - A\) to check your work.
  1. Use the LU factorization to solve\(A{\bf{x}} = {\bf{b}}\).
  1. Obtain \({A^{ - {\bf{1}}}}\) and note that\({A^{ - {\bf{1}}}}\) is a dense matrix with no
    band structure. When Ais large, LandUcan be stored in
    much less space than\({A^{ - {\bf{1}}}}\). This fact is another reason for
    preferring the LU factorization of Ato \({A^{ - {\bf{1}}}}\) itself.
