In Exercise 5, write a matrix equation that determines the loop currents. [M] If MATLAB or another matrix program is available, solve the system for the loop currents.

Short Answer

Expert verified

The matrix equation is

\[\begin{array}{c}Ri = v\\\left[ {\begin{array}{*{20}{c}}{11}&{ - 5}&0&0\\{ - 5}&{10}&{ - 1}&0\\0&{ - 1}&9&{ - 2}\\0&0&{ - 2}&{10}\end{array}} \right]\left[ {\begin{array}{*{20}{c}}{{I_1}}\\{I{ & _2}}\\{{I_3}}\\{{I_4}}\end{array}} \right] = \left[ {\begin{array}{*{20}{c}}{50}\\{ - 40}\\{30}\\{ - 30}\end{array}} \right]\end{array}\].

And its solution is \[i = \left[ {\begin{array}{*{20}{c}}{3.68}\\{ - 1.9}\\{2.57}\\{ - 2.49}\end{array}} \right]\].

Step by step solution

01

Write the equation for each loop

In loop 1, apply Ohm鈥檚 law as

\[{I_1} + 5{I_1} + 4{I_1} + {I_1} = 11{I_1}\].

In loop 2, apply the voltage law as

\[11{I_1} - 5{I_2} = 50\].

In loop 2, apply the current law as

\[ - 5{I_1} + 10{I_2} - {I_3} = - 40\].

In loop 3, apply the current law as

\[ - {I_2} + 9{I_3} - 2{I_4} = 30\].

In loop 4, apply the current law as

\[ - 2{I_3} + 10{I_4} = - 30\].

02

Write the matrix equation

The matrix equation of the above system is

\[\left[ {\begin{array}{*{20}{c}}{11}&{ - 5}&0&0\\{ - 5}&{10}&{ - 1}&0\\0&{ - 1}&9&{ - 2}\\0&0&{ - 2}&{10}\end{array}} \right]\left[ {\begin{array}{*{20}{c}}{{I_1}}\\{I{ & _2}}\\{{I_3}}\\{{I_4}}\end{array}} \right] = \left[ {\begin{array}{*{20}{c}}{50}\\{ - 40}\\{30}\\{ - 30}\end{array}} \right]\].

That is \[Ri = v\].

03

Solve the system

Use the following MATLAB command to obtain the reduced row echelon form of R:

\[\begin{array}{l} \gg {\rm{R}} = \left[ {11\,\, - 5\,\,\,0\,\,0;\,\, - 5\,\,10\,\, - 1\,\,0;\,\,\,0\,\, - 1\,\,9\,\, - 2;\,\,0\,\,0\,\, - 2\,\,10} \right];\\ \gg {\rm{rref}}\left( {\rm{R}} \right)\end{array}\]

\[R = \left[ {\begin{array}{*{20}{c}}{11}&{ - 5}&0&0&{50}\\{ - 5}&{10}&{ - 1}&0&{ - 40}\\0&{ - 1}&9&{ - 2}&{30}\\0&0&{ - 2}&{10}&{ - 30}\end{array}} \right] \sim \left[ {\begin{array}{*{20}{c}}1&0&0&0&{\frac{{265}}{{72}}}\\0&1&0&0&{ - \frac{{137}}{{72}}}\\0&0&1&0&{\frac{{185}}{{72}}}\\0&0&0&1&{ - \frac{{179}}{{72}}}\end{array}} \right]\]

Hence the loop currents are \[{I_1} = \frac{{265}}{{72}} \approx 3.68,{I_2} = - \frac{{137}}{{72}} \approx - 1.9,{I_3} = \frac{{185}}{{72}} \approx 2.57,\] and \[{I_4} = - \frac{{179}}{{72}} \approx - 2.49\]. That is,

\[i = \left[ {\begin{array}{*{20}{c}}{3.68}\\{ - 1.9}\\{2.57}\\{ - 2.49}\end{array}} \right]\].

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

If Ais a 2脳2matrix with eigenvalues 3 and 4 and if localid="1668109698541" u鈫� is a unit eigenvector of A, then the length of vector Alocalid="1668109419151" u鈫�cannot exceed 4.

Consider the dynamical system x鈫�(t+1)=[1.100鈪�]X鈫�(t).

Sketch a phase portrait of this system for the given values of 位:

位=1

In Exercises 23 and 24, key statements from this section are either quoted directly, restated slightly (but still true), or altered in some way that makes them false in some cases. Mark each statement True or False, and justify your answer. (If true, give the approximate location where a similar statement appears, or refer to a de铿乶ition or theorem. If false, give the location of a statement that has been quoted or used incorrectly, or cite an example that shows the statement is not true in all cases.) Similar true/false questions will appear in many sections of the text.

23.

a. Every elementary row operation is reversible.

b. A \(5 \times 6\)matrix has six rows.

c. The solution set of a linear system involving variables \({x_1},\,{x_2},\,{x_3},........,{x_n}\)is a list of numbers \(\left( {{s_1},\, {s_2},\,{s_3},........,{s_n}} \right)\) that makes each equation in the system a true statement when the values \ ({s_1},\, {s_2},\, {s_3},........,{s_n}\) are substituted for \({x_1},\,{x_2},\,{x_3},........,{x_n}\), respectively.

d. Two fundamental questions about a linear system involve existence and uniqueness.

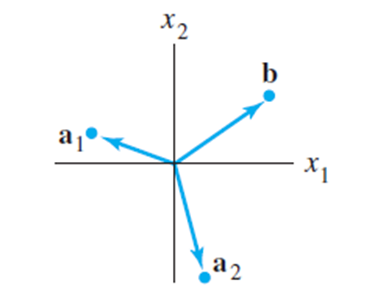

Let \({{\bf{a}}_1}\) \({{\bf{a}}_2}\), and b be the vectors in \({\mathbb{R}^{\bf{2}}}\) shown in the figure, and let \(A = \left( {\begin{aligned}{*{20}{c}}{{{\bf{a}}_1}}&{{{\bf{a}}_2}}\end{aligned}} \right)\). Does the equation \(A{\bf{x}} = {\bf{b}}\) have a solution? If so, is the solution unique? Explain.
