Question:(a) Use the general solution given in Example 5 to solve the IVP. 4x"+e-0.1tx=0,x(0)=1,x'(0)=-12.Also use J'0(x)=-J1(x) and Y'0(x)=-Y1(x)=-Y1(x)along withTable 6.4.1 or a CAS to evaluate coefficients.

(b) Use a CAS to graph the solution obtained in part (a) for.

Short Answer

Expert verified

(a) The general solution is x(t) = -4.78601J0(10e-t/20)-3.18028Y0(10e-t/20) .

(b) The graph has been plotted.

Step by step solution

01

Define Bessel’s equation.

Let the Bessel equation be x2y"+xy'+(x2-n2)y=0. This equation has two linearly independent solutions for a fixed value of n . A Bessel equation of the first kind, indicated by Jn(x), is one of these solutions that may be derived usingFrobinous approach.

y1 = xaJp(bxc)

y1 = xaJ-p(bxc)

At ,x = 0 this solution is regular. The second solution, which is singular at,x = 0 , is represented by Yn(x) and is called a Bessel function of the second kind.

y3=xa(cospπ)Jp(bxc)-J-p(bxc)sinpπ

02

Determine the form of the general solution.

Let the given be 4x"e-0.1tx=0,x(0)=1,x'(0)=-12.That has the general solution x(t)=c1J0a2kme-at/2+ C2Y02akme-at/2, where C1 and C2 aare arbitrary constants

The given DE has the form of mx"+ke-atx=0 . That yields, m= 4, k =1, a=0.1

Hence, the general solution becomes,

x(t)= C1J0role="math" localid="1663946251828" 20.114e-0.1t/2+C2Y920.114e-0.1t/2

=C1J0(10e-t/20)+C2Y0(10e-t/20)

2akme-at/2+c2Y02akme-at/2-12
03

Find the initial value.

Apply the initial conditions.

x(0)=C1J0(10e0)+C2Y0(10e0)

1=C1J0(10)+C2Y0(10) … (1)

x'(t)=ddxC1J010e-t/20+ddxC2Y010e-t/20

=

… (2)

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

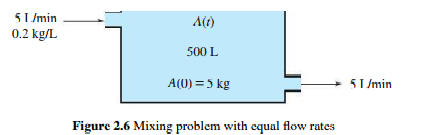

Mixing.Suppose a brine containing 0.2 kg of salt per liter runs into a tank initially filled with 500 L of water containing 5 kg of salt. The brine enters the tank at a rate of 5 L/min. The mixture, kept uniform by stirring, is flowing out at the rate of 5 L/min (see Figure 2.6).

(a)Find the concentration, in kilograms per liter, of salt in the tank after 10 min. [Hint:LetAdenote the number of kilograms of salt in the tank attminutes after the process begins and use the fact that

rate of increase inA=rate of input- rate of exit.

A further discussion of mixing problems is given in Section 3.2.]

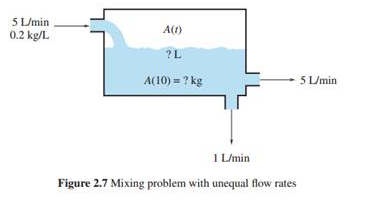

(b)After 10 min, a leak develops in the tank and an additional liter per minute of mixture flows out of the tank (see Figure 2.7). What will be the concentration, in kilograms per liter, of salt in the tank 20 min after the leak develops? [Hint:Use the method discussed in Problems 31 and 32.]

Question: Let f(x)and g(x)be analytic at x0. Determine whether the following statements are always true or sometimes false:

(a) 3f(x)+g(x)is analytic at x0.

(b) f(x)/g(x)is analytic at x0.

(c) f'(x)is analytic at x0.

(d) f(x)3-∫x0xg(t)dt is analytic at x0.

Show that the equation(dydx)2+y2+4=0 has no (real-valued) solution.

Use the method in Problem 32 to find the orthogonal trajectories for each of the given families of curves, where k is a parameter.

(a)2x2+y2=k

(b)y=kx4

(c)y=ekx

(d)y2=kx

[Hint: First express the family in the form F(x, y) = k.]

The temperatureT(in units of 100 F) of a university classroom on a cold winter day varies with timet(in hours) asdTdt=1-T,ifheatingunitsisOn-T,ifheatingunitsisOFF.

T=0Suppose at 9:00 a.m., the heating unit is ON from 9-10 a.m., OFF from 10-11 a.m., ON again from 11 a.m.–noon, and so on for the rest of the day. How warm will the classroom be at noon? At 5:00 p.m.?
